ErgoDeck General Purpose - Smooth Anti-Fatigue Flooring

SKU 568

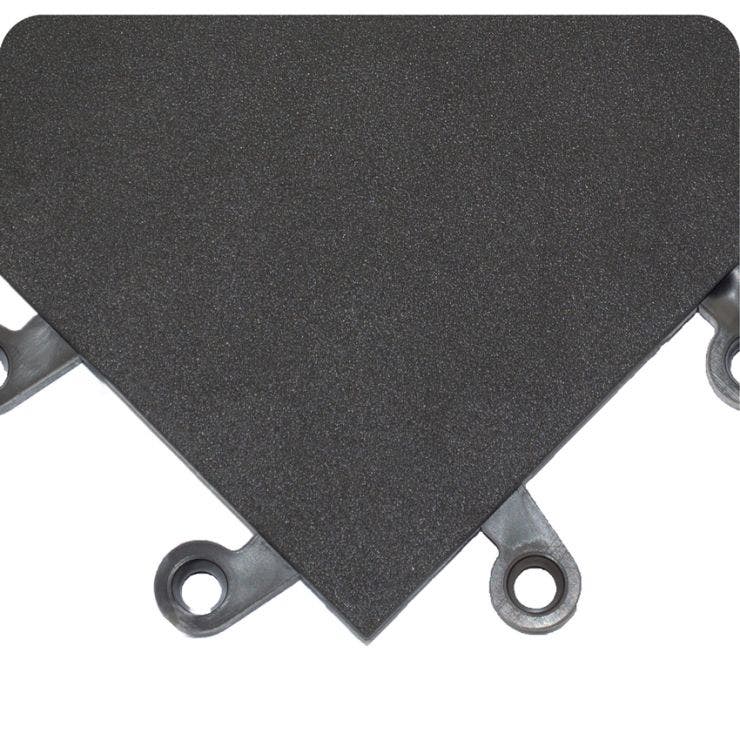

Smooth, General Purpose ErgoDeck is a comfortable, ergonomic floor with long-lasting performance. The 18” x 18” modular tiles feature patented LockSafe interlocks that deliver secure connections but can be taken apart and repositioned as workflow and operations change.

Unlike soft mats that deform under load, Smooth ErgoDeck General Purpose features a firm, lightly textured surface that’s ideal for light cart and wheeled traffic but without compromising traction.

The softer, General Purpose compound and box spring structure are engineered to provide greater impact absorption and ergonomic support.

Optional 6" side safety ramps and corners have countersunk holes for semi-permanent installation.

Construction

Available Colors
Standard Sizes	Available in interlocking modular tiles. Allows for full do-it-yourself customization on-site.
Ramp	Ramps are sold separately and attached on-site during installation.
Cut Lengths	Cut lengths are not available for this product.
Customization	Full customization available: Any size! Any shape! For price and lead time, simply submit a drawing with dimensions to quotes@wearwell.com or contact Wearwell for assistance.
Connector	Exclusive LockSafe Connector System
Surface Pattern	Smooth surface with mild texture
Plastic Resin	PVC with a shore A durometer range of 85-95

Info

Warranty:	Limited Lifetime
Country of Origin:	Proudly manufactured in the USA.
Prop 65 Warning:	WARNING: This product can expose you to chemicals including Di(2-ethylhexyl) phthalate, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Applications

Suitable Environment	Dry floors or where common inorganic acids, bases, salts, fats, oils, and many alcohols are present. Avoid aromatic hydrocarbons, concentrated acids and bases.
Applications	Manufacturing assembly lines airports workshops garages warehouse pick and pack metal fabrication machine shops.

Testing

Flammability:	MVSS 302 / 'A'; Rating
Compression Deflection:	ASTM D575 - 70 psi @ 15% =.20" distance compressed
Dielectric:	Not Rated for Switchboard Applications
ESD:	Not Rated for ESD Applications
Taber Abrasion:	ASTM D 3884 / 1% loss

Request a Quote or Sample:

First Name

Last Name

Company

E-mail address

Phone

Zip/Postal code

Quantities Needed or Additional Notes?

SAMPLE-ErgoDeck Smooth Charcoal
SAMPLE-ErgoDeck Smooth Black

Country

Street

City

State/Province

SKU	Short Description	Color	Width	Length	Thickness	Stock Part	UOM
Ramp
560.78x6x18BK-CS10	ErgoDeck heavy duty ramps provide a professional finish and a smooth on-off transition for your ErgoDeck flooring. These ramps work to prevent trips while outlining a perimeter of a workspace.	Black	6 In. (15 cm)	18 In. (46 cm)	7/8 In. (22 mm)	Yes	CS-10
560.78x6x36ALYL	Tough environments demand even tougher edging. ErgoDeck® Aluminum Ramps - are high-strength, lightweight, and chemical resistant ramps that create a gradual transition for any ErgoDeck® flooring system - not to mention a sleek design look.	Yellow	6 In. (15 cm)	36 In. (91 cm)	7/8 In. (22 mm)	Yes	EA
560.78x6x18YL-CS10	ErgoDeck ramps	Yellow	6 In. (15 cm)	18 In. (46 cm)	7/8 In. (22 mm)	Yes	CS-10
561.78x6x18BK-CS10	ErgoDeck Heavy Duty with Grit Shield Ramp Black Case	Black	6 In. (15 cm)	18 In. (46 cm)	7/8 In. (22 mm)	No	CS-10
Outside corner
560.78x6x15x15BK-CS4	ErgoDeck Outside Corner	Black	6 In. (15 cm)	15 In. (38 cm)	7/8 In. (22 mm)	Yes	CS-4
560.78x6x15x15YL-CS4	ErgoDeck Outside Corner	Yellow	6 In. (15 cm)	15 In. (38 cm)	7/8 In. (22 mm)	Yes	CS-4
561.78x6x15x15BK-CS4	ErgoDeck Heavy Duty with Grit Shield Outside Corner Black	Black	6 In. (15 cm)	15 In. (38 cm)	7/8 In. (22 mm)	No	CS-4
560.78x6x15x15ALYL	Tough environments demand even tougher edging. ErgoDeck® Aluminum Ramps - are high-strength, lightweight, and chemical resistant ramps that create a gradual transition for any ErgoDeck® flooring system - not to mention a sleek design look.	Yellow	6 In. (15 cm)	15 In. (38 cm)	7/8 In. (22 mm)	Yes	EA
Inside corner
560.78x6x9x9BK	The ErgoDeck inside corner allows for any possible configuration of ErgoDeck. Wearwell’s inside corner fits snug, preventing trips and calling out the perimeter of the workspace.	Black	6 In. (15 cm)	9 In. (23 cm)	7/8 In. (22 mm)	Yes	EA
560.78x6x9x9YL	ErgoDeck Inside Corner	Yellow	6 In. (15 cm)	9 In. (23 cm)	7/8 In. (22 mm)	Yes	EA
561.78x6x9x9BK	ErgoDeck Heavy Dutywith Grit Shield Inside Corner Black	Black	6 In. (15 cm)	9 In. (23 cm)	7/8 In. (22 mm)	No	EA
560.78x6x9x9ALYL	* Aluminum Ramps are virtually indestructible and exceptionally resistant to chemicals. * Impervious to curling or tearing, these safety yellow Aluminum Ramps add durability and visibility to any ErgoDeck installation. * Traction bars along the length prevent slips and discourage wheels from rolling backwards unexpectedly. * 6 In. (15 cm) wide ramps provide easy on-and-off access while actively preventing trips and clearly defining the perimeter of the workspace. * The entire ErgoDeck® Ergonomic Flooring System is completely compatible across all styles, colors and configurations. You control the look and feel you want across every inch of an ErgoDeck installation. * Maximum Load Rating: 1,000 lbs (454 kgs) psi * U.S. PATENT NO. D502,557; D520,650.	Aluminum	6 In. (15 cm)	9 In. (23 cm)	7/8 In. (22 mm)	Yes	EA

Product Family		Thickness		Width		Length	Color		Product Number
415	.	916	x	3	x	10	BK	=	415.916x3x10BK

Chemical	Urethane	Nitrile	PVC	CFR	SBR	Natural Rubber	Aluminum Resistance	Polypropylene Resistance
Acetone	U	U	U	C	C	C	A	D
Animal Fats	NT	A	C	U	U	U	A	A
Bleach Solution (10% Dilute)	NT	B	B	C	C	C	D	B
Boric Acid	B	A	A	A	A	A	D	A
Brake Fluid	U	A	B	D	D	D	A	A
Brake Fluid (Silicone Based)	U	A	B	A	B	B	A	A
Chlorine Solution (3% Dilute)	C	A	B	C	C	C	D	U
Citric Acid	NT	A	C	C	C	U	B	A
Cutting Fluid (Mineral Oil Based)	U	B	B	B	C	D	A	B
Diesel Oil	U	A	B	U	U	U	A	B
Ethylene Acetate	NT	U	NT	U	U	U	A	A
Ethylene Glycol	B	A	A	A	A	A	A	A
Gasoline	U	B	B	D	D	U	A	U
Hydraulic Oil (Petroleum)	U	A	B	D	D	D	A	D
Hydrochloric Acid (37% Dilute)	U	C	C	B	B	B	U	A
Isopropyl Alcohol	A	B	A	B	B	A	A	A
Lacquer Solvents	U	U	U	U	U	U	A	D
Lindol (Hydraulic Fluid)	NT	U	NT	U	U	U	A	D
MEK (Methyl Ethyl Ketone)	U	U	U	U	U	U	B	B
Motor Oil	D	A	A	D	D	U	A	A
Mineral Oil	C	A	B	A	B	U	A	B
Naptha	NT	C	U	U	U	U	A	B
Napthlene	U	U	U	U	U	U	B	B
Petroleum	U	C	B	D	D	D	D	B
Salt Water	A	A	B	B	B	C	B	A
Strong Alkalies/Bases	D	C	B	C	C	U	U	A
Sulfuric Acid	D	B	A	D	D	C	U	A
Tolulene	U	U	U	U	U	U	A	C
Transmission Fluid (Type A)	U	B	A	C	U	U	A	A
Trichloroethane	U	U	U	U	U	U	D	C
Vegetable Oil	C	A	B	C	C	C	B	A
Water	B	A	A	A	A	A	A	A
