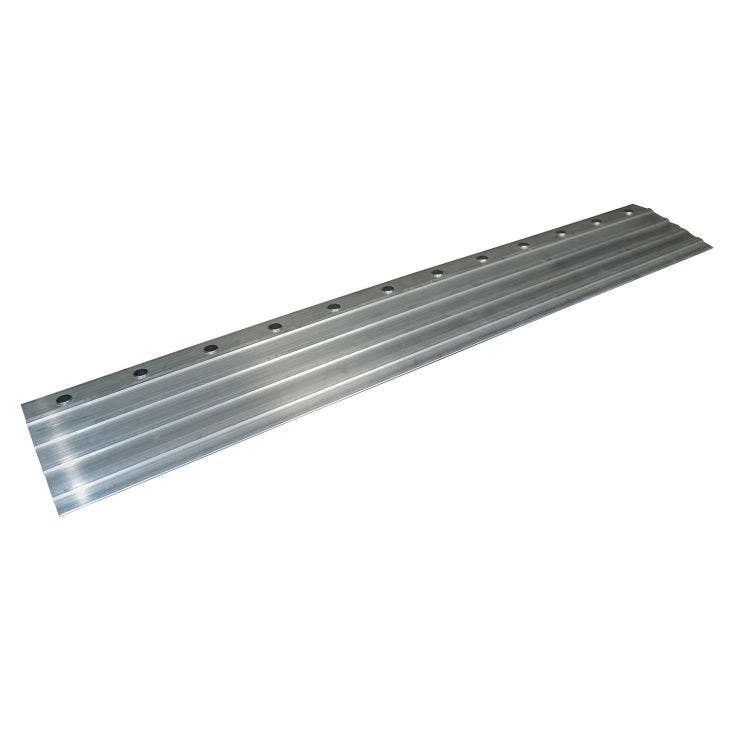

Aluminum Ramps For ErgoDeck

Need It Now? Buy Online

Wearwell products are available through many amazing distributors across North America, including MSC, Fastenal, Vallen, Motion Industries, WESCO and RS Hughes. Wearwell products are also available online at Amazon and other retailers. Or, you can purchase Wearwell online by clicking the “Buy Now” button.

Tough environments demand even tougher edging. ErgoDeck® Aluminum Ramps - are high-strength, lightweight, and chemical resistant ramps that create a gradual transition for any ErgoDeck® flooring system - not to mention a sleek design look.

  • Connects into any ErgoDeck style flooring for a secure fit and smooth transition
  • Manufactured from 100% Aluminum
  • 1000 PSI load rating
  • 12 LockSafe connectors included with each aluminum ramp
  • Eliminate problems with chemical resistance, edge curling and cart damage
  • 3-year warranty

Parameters of Category: Specifications - General
Suitable EnvironmentWet, Oily, Slippery
TypeAnti-Fatigue Flooring
Customization LevelC1
Solid or DrainageSolid
CompoundAluminum
Recycled>80%
Warranty3 Years
Putting Together Wearwell Part Numbers
See an example of how Wearwell puts together their part numbers.

Ramps and accessories

SKU Short Description Color Thickness Dimensions Stock Part UOM
Ramp
560.78x6x36AL

Tough environments demand even tougher edging. ErgoDeck® Aluminum Ramps - are high-strength, lightweight, and chemical resistant ramps that create a gradual transition for any ErgoDeck® flooring system - not to mention a sleek design look.

Aluminum 6" x 36" Yes EA
Test Specification & Results
PropertyTest / Result
Flammability Non-Flammable
Taber Abrasion 0%
Temperature Range 0 to 120 F
Coefficient of Friction ASTM F1677 / Dry: COF = .65 / Wet: COF = .42
Compression Deflection Not Available
Tear Strength Not Available
ESD Rating Not Available
Dielectric Strength Not Available

Key

  • A = Performs well
  • B = Slightly affected
  • C = Moderately affected
  • D = Highly affected
  • U = Not recommended
  • NT = Not tested
Chemical Urethane Nitrile PVC CFR SBR Natural Rubber
Acetone U U U C C C
Animal Fats NT A C U U U
Bleach Solution (10% Dilute) NT B B C C C
Boric Acid B A A A A A
Brake Fluid U A B D D D
Brake Fluid (Silicone Based) U A B A B B
Chlorine Solution (3% Dilute) C A B C C C
Citric Acid NT A C C C U
Cutting Fluid (Mineral Oil Based) U B B B C D
Diesel Oil U A B U U U
Ethylene Acetate NT U NT U U U
Ethylene Glycol B A A A A A
Hydraulic Oil (Petroleum) U A B D D D
Hydrochloric Acid Cole (37% Dilute) U C C B B B
Isopropyl Alcohol A B A B B A
Lacquer Solvents U U U U U U
Lindol (Hydraulic Fluid) NT U NT U U U
MEK U U U U U U
Mineral Oil C A B A B U
Naptha NT C U U U U
Napthlene U U U U U U
Petroleum U C B D D D
Salt Water A A B B B C
Tolulene U U U U U U
Transmission Fluid (Type A) U B A C U U
Trichloroethane U U U U U U
Vegetable Oil C A B C C C
Write Your Own Review
You're reviewing:Aluminum Ramps For ErgoDeck
Your Rating

Q: What are the advantages to using ErgoDeck Aluminum Ramps?

A: ErgoDeck Aluminum Ramps eliminate edge curling and cart damage caused by chemical exposure and wheel traffic.


Q: What specific ErgoDeck tiles can I use the Aluminum Ramps with?

A:Just like all the different ErgoDeck tiles are interchangeable for different applications, the ErgoDeck Aluminum Ramps connect to any ErgoDeck floor tile.


Q: What is the specific load rating for the ErgoDeck Aluminum Ramps?

A: The load rating for the ErgoDeck Aluminum Ramps is 1,000 PSI (pounds per square inch)..


Q: How do the ErgoDeck Aluminum Ramps connect to the ErgoDeck tiles?

A: There are two ways to connect, 1) connect the ramps directly to the ErgoDeck tiles or 2) use the LockSafe Connector to join the connectors.


Q: What is the ErgoDeck LockSafe Connector?

A: We include 12 ErgoDeck LockSafe Connectors with each ErgoDeck Aluminum Ramp. The LockSafe Connector allows you to join like connections and easily customize without tools.


Q: What specific ErgoDeck Aluminum Ramp parts are available?

A: The ErgoDeck Aluminum Ramps are a complete edging system. The individual parts offered include 3’ramps, outside corners and inside corners.


Q: What is the warranty on the ErgoDeck Aluminum Ramps?

A: The warranty for the ErgoDeck Aluminum Ramps is 3 years.


Q: How wide are the ErgoDeck Aluminum Ramps?

A: The ErgoDeck Aluminum Ramps are 6” wide which creates a gradual transition for any ErgoDeck flooring system.


Q: What are the benefits of ErgoDeck Aluminum Ramps?

A:The benefits of ErgoDeck Aluminum Ramps are high-strength, lightweight and they are chemical resistant.
