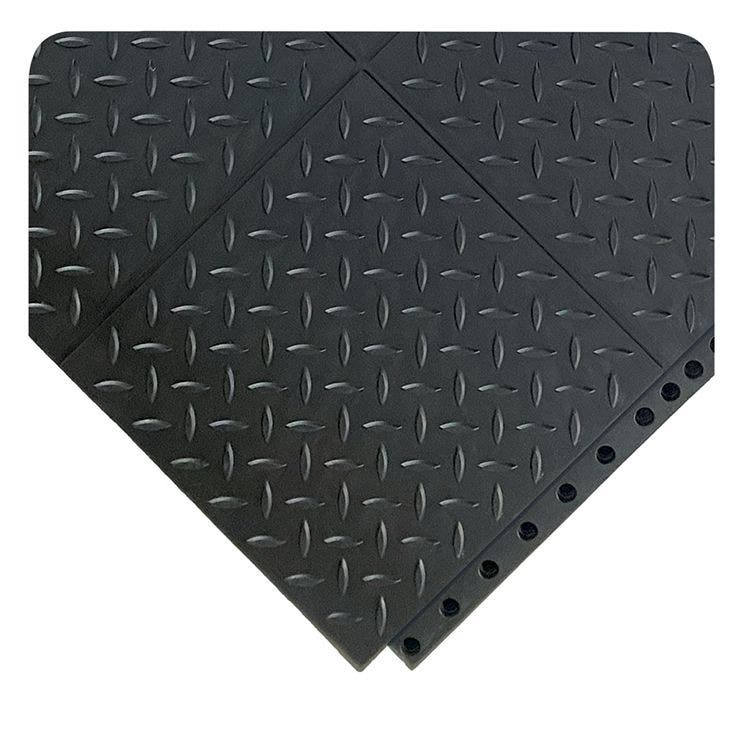

24/SEVEN® LockSafe® MAX Diamond-Plate-GR

Name: 24/SEVEN® LockSafe® MAX Diamond-Plate-GR
SKU: 583-GR
Availability: InStock

SKU 583-GR

24/SEVEN® LockSafe® MAX combines the benefits of a modular product with all the comfort of an anti-fatigue mat. Each 3 ft x 3 ft ( 91cm x 91cm) tile features secure, seamless connections on all sides. The resilient, long-lasting EVA foam sponge base makes 24/SEVEN® LockSafe® MAX the ultimate solution for prolonged standing in areas big and small.

The male and female connectors feature a flange that lock together and won’t come apart until you want them to. Traditional modular rubber mats have passive connections that fail, leaving dangerous, unsightly trip hazards. 24/Seven MAX saves the time and labor of continual assembly and potential workers' comp claims.

Choose 24/SEVEN® LockSafe® MAX for a dependable, safe, ergonomic floor.

Diamond-Plate surface pattern
Large 3 ft x 3 ft tiles (91cm x 91cm)
Grease Resistant Rubber
Also available with a smooth, lightly texture surface
U.S. PATENT No. D882,293 S; 10,914,081; 11,174,648; 11,454,037

Show less

Product Specifications

Info
Purpose
Testing

Info

Warranty:	1 Year
Country of Origin:	MEXICO

Purpose

Suitable Environment	Dry

Testing

Flammability:	MVSS 302 / 'B'; Rating
Compression Deflection:	ASTM D575 - 16.5psi @ 25% =.16" distance compressed

Quantity - +

Need Help?

Buy From a Distributor

Wearwell products are available through select distributors across North America, including MATSonline, MSC, Fastenal, Vallen, Motion Industries, WESCO, NEXT Industries, Uline, American Floor Mats, RS Hughes and Tenaquip in Canada. Or you can purchase Wearwell online by clicking the "Buy Now" button.

Select a Sample

SAMPLE- 12" 24/Seven LockSafe MAX Diamond-Plate and Smooth Surface

The sample was successfully added to your cart.

Download a Product Details Spec Sheet

Download Spec

Part Numbers

SKU	Short Description	Color	Width	Length	Height	Thickness	Stock Part	UOM
583.1x3x3GRBK	24/Seven LockSafe MAX Diamond-Plate	Black	3 Ft. (.91 m)	3 Ft. (.91 m)		1 In. (25 mm)	Yes	EA

Ramps and accessories

SKU	Short Description	Color	Width	Length	Thickness	Stock Part	UOM
Female edging
581.EdgingFGRYL	24/Seven® LockSafe® MAX Female Edging	Yellow	4 In. (10 cm)	36 In. (91 cm)	1 In. (25 mm)	Yes	EA
Male edging
581.EdgingMGRYL	24/Seven® LockSafe® MAX Male Edging	Yellow	4 In. (10 cm)	36 In. (91 cm)	1 In. (25 mm)	Yes	EA
Outside corner
581.CornerGRYL-CS4	24/Seven® LockSafe® MAX Outside Corner	Yellow	4 In. (10 cm)	4 In. (10 cm)	1 In. (25 mm)	Yes	CS-4

Putting Together Wearwell Part Numbers See an example of how Wearwell puts together their part numbers.

Product Family		Thickness		Width		Length	Color		Product Number
415	.	916	x	3	x	10	BK	=	415.916x3x10BK

Chemical Resistance

Key

A = Performs well
B = Slightly affected
C = Moderately affected
D = Highly affected
U = Not recommended
NT = Not tested

Chemical	Urethane	Nitrile	PVC	CFR	SBR	Natural Rubber
Acetone	U	U	U	C	C	C
Animal Fats	NT	A	C	U	U	U
Bleach Solution (10% Dilute)	NT	B	B	C	C	C
Boric Acid	B	A	A	A	A	A
Brake Fluid	U	A	B	D	D	D
Brake Fluid (Silicone Based)	U	A	B	A	B	B
Chlorine Solution (3% Dilute)	C	A	B	C	C	C
Citric Acid	NT	A	C	C	C	U
Cutting Fluid (Mineral Oil Based)	U	B	B	B	C	D
Diesel Oil	U	A	B	U	U	U
Ethylene Acetate	NT	U	NT	U	U	U
Ethylene Glycol	B	A	A	A	A	A
Hydraulic Oil (Petroleum)	U	A	B	D	D	D
Hydrochloric Acid Cole (37% Dilute)	U	C	C	B	B	B
Isopropyl Alcohol	A	B	A	B	B	A
Lacquer Solvents	U	U	U	U	U	U
Lindol (Hydraulic Fluid)	NT	U	NT	U	U	U
MEK	U	U	U	U	U	U
Mineral Oil	C	A	B	A	B	U
Naptha	NT	C	U	U	U	U
Napthlene	U	U	U	U	U	U
Petroleum	U	C	B	D	D	D
Salt Water	A	A	B	B	B	C
Tolulene	U	U	U	U	U	U
Transmission Fluid (Type A)	U	B	A	C	U	U
Trichloroethane	U	U	U	U	U	U
Vegetable Oil	C	A	B	C	C	C

Download Chemical Resistance Guide

LITERATURE

Limited Warranty

24/SEVEN LockSafe Brochure

Rubber Matting Capabilities

Wearwell Digital Catalog

View Maintenance Guide

Faq's

FAQ’s

Q: What does GR stand for?

A: GR stands for Grease Resistant.

Q: What types of fluids is the GR compound resistant to?

A: The GR compound is best suited for areas with water and dry debris. It is also resistant to boric acid & ethylene glycol.

Q: Is there edging available?

A: Yes, 3" edging is available in both yellow and black for 24/Seven LockSafe. Edging comes in both male and female to correspond with the male or female side of the mat. Edging comes in 3" wide by 36" long strips.

Q: Can 24/Seven LockSafe mats be exposed to liquids?

A: Yes, 24/Seven LockSafe mats can be placed in both wet and dry environments.

Q: How do I clean 24/Seven LockSafe?

A: Use a high-pressure hose (not to exceed 500 psi) and hot water (max 160o F) to rid the mats of oils. For best results use a mild soap or detergent with a pH between 4 and 9, to clean the mats. Do not use steam (unless specifically recommended), degreasers, or caustic chemicals. Do not machine wash or mechanically scrub the mats.

Q: Can you customize a mat to my specific requirements?

A: Yes we can. We offer 3 types of customization:

C1- Custom lengths

C2- Custom lengths and widths

C3- Fully custom (size & shape)

The level of customization by product is on the details tab at the bottom of every product page.

Q: Are the colors shown on your website the exact color I should expect to receive?

A: No, because monitors vary so there may be a slight variance in the color. If color choice is critical, we suggest that you order a sample. Due to manufacturing processes and material dye lots, color can vary, but our products fall within an industry-standard acceptable variation.

Q: Do 24/Seven LockSafe mats pose a tripping hazard?

A: 24/Seven LockSafe mats are available with 3" edging in yellow and black. The ramps allow for a smooth transition on and off the mat. The mats lock together with a patented interlock so they do not come apart, preventing the possiblity of a tripping hazard.

How Much Do I Need?

Measurements

Imperial

Metric

Part

Enter the width and length of the installation area.

Width (ft) Width (m)		Length (ft) Length (m)		Square Footage of Flooring Square Meters of Flooring
	×		=	50

Length entered should be the total feet of edging for all ramped sides.

Length entered should be the total meters of edging for all ramped sides.

Length (ft) Length (m)		Linear Footage of Edging Linear Meters of Edging
	=	40
