24/Seven® LockSafe® Interlocking Rubber Floor Tiles - Drainage NBR w/ Gritshield®

Name: 24/Seven® LockSafe® Interlocking Rubber Floor Tiles - Drainage NBR w/ Gritshield®
SKU: 586-NBR
Price: 29.66 USD
Availability: InStock

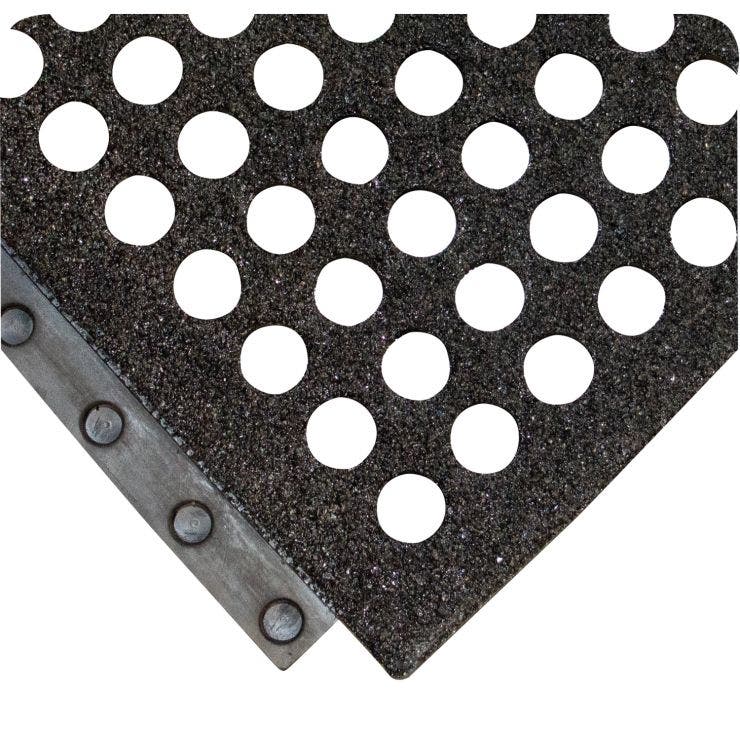

Slip prevention and anti-fatigue in one. 24/SEVEN® LockSafe® NBR with GRITSHIELD® is ideal for high chemical resistance in high-demand areas. The open-style surface is ideal for slippery areas that require drainage.

These large 3'x3' rubber tiles interlock and require no tools making installation to any configuration quick and easy. Use optional 24/SEVEN NBR edging and corners when and where you need them.

The Positive Interlock System provides a secure connection in all directions, so you don't have to worry about them coming apart even with heavy foot traffic. Secure connections, lightweight design, and unmatched flexibility allow assembled sections to be lifted up, rolled up, and rolled away for removal or maintenance. Tiles hold together and only come apart when you want them to.

U.S. PATENT NO. D882,293 S
Ideal for oily, greasy, high-demand areas
Hidden positive interlocking system
Choose GRITSHIELD for increased traction
Choice of solid or drainage style
Create your own custom widths or lengths in 12” (30 cm) increments
Overall thickness 5/8" (16 mm)

Learn more about 24/SEVEN LockSafe here.

Show less

SKU 586-NBR

In stock

Select Tile

272 - +

Select Male Edging Color

274 - +

Select Female Edging Color

273 - +

Select Corners Color

307 - +

Final product price

Quantity - +

Buy Now

Select a Sample

SAMPLE-12" 24/Seven® LockSafe® Drainage NBR w/Gritshield 5/8in x 12in x 12in

The sample was successfully added to your cart.

Download a Product Details Spec Sheet

Download Spec

How Much Do I Need?

Measurements

Imperial

Metric

Part

Enter the width and length of the installation area.

Width (ft) Width (m)		Length (ft) Length (m)		Square Footage of Flooring Square Meters of Flooring
	×		=	50

Length entered should be the total feet of edging for all ramped sides.

Length entered should be the total meters of edging for all ramped sides.

Length (ft) Length (m)		Linear Footage of Edging Linear Meters of Edging
	=	40

If you would like to receive a copy of this report please submit the below form

First Name

Last Name

Zip Code/Postal Code

Mobile

Thank you for the request. The Estimates are sent to your email. Kindly reach out to us for any queries here.

Find details here.

Need help with the purchase? find details here

Part Numbers

SKU	Short Description	Color	Thickness	Dimensions	Stock Part	UOM
586.58x3x3NBRBK	24/Seven® LockSafe® Drainage NBR w/ Gritshield®	Black	5/8"	3' x 3'	Yes	EA

Ramps and accessories

SKU	Short Description	Color	Thickness	Dimensions	Stock Part	UOM
Female edging
578.EDGINGFNBRBK	24/Seven® LockSafe® Edging, Female, NBR, 3" x 36", Black	Black	5/8"	3" x 36"	Yes	EA
578.EDGINGFNBRYL	24/Seven LockSafe Edging, Female, NBR, 3' x 36", Yellow	Yellow	5/8"	3" x 36"	Yes	EA
Male edging
578.EDGINGMNBRBK	24/Seven® LockSafe® Male Edging NBR, 3" x 36", Black	Black	5/8"	3" x 36"	Yes	EA
578.EDGINGMNBRYL	24/Seven® LockSafe®, 5/8 thick, 3' x 36", Yellow	Yellow	5/8"	3" x 36"	Yes	EA
Outside corner
578.CORNERNBRYL-CS4	24/Seven LockSafe NBR Corners, Yellow, 5/8in x 3in x 3in-CS4	Yellow	5/8"	3" x 3"	Yes	EA
578.CORNERNBRBK-CS4	24/Seven LockSafe Corner Ramp NBR 3" x 3" Black	Black	5/8"	3" x 3"	Yes	EA

Putting Together Wearwell Part Numbers See an example of how Wearwell puts together their part numbers.

Product Family		Thickness		Width		Length	Color		Product Number
ML414	.	1516	x	2	x	10	BK	=	ML414.1516x2x10BK

Fast Facts

DETAILS & COMPOSITION

Environment	Dry, Wet, Oily, Slippery
Wearwell Categories	Anti-Fatigue Flooring
Customization Level	C3 - Full Custom (Length, Width, Shape)
Solid or Drainage	Drainage
Compound	Nitrile Rubber (NBR)
Recycled	>50%
Warranty	1 Year
WARNING	WARNING: This product can expose you to chemicals including Di(2-ethylhexyl) phthalate, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

TEST RESULTS

Property	Test / Result
Flammability	MVSS 302 / 'A'; Rating
Taber Abrasion	Federal Standard 191 Modified / 1% loss
Temperature Range	10 to 140 F
Coefficient of Friction	ASTM F1677 / Dry: COF = .90 / Wet COF = 020
Compression Deflection	Not Available
Tear Strength	Not Available
ESD Rating	Not Available
Dielectric Strength	Not Available

Chemical Resistance

Key

A = Performs well
B = Slightly affected
C = Moderately affected
D = Highly affected
U = Not recommended
NT = Not tested

Chemical	Urethane	Nitrile	PVC	CFR	SBR	Natural Rubber
Acetone	U	U	U	C	C	C
Animal Fats	NT	A	C	U	U	U
Bleach Solution (10% Dilute)	NT	B	B	C	C	C
Boric Acid	B	A	A	A	A	A
Brake Fluid	U	A	B	D	D	D
Brake Fluid (Silicone Based)	U	A	B	A	B	B
Chlorine Solution (3% Dilute)	C	A	B	C	C	C
Citric Acid	NT	A	C	C	C	U
Cutting Fluid (Mineral Oil Based)	U	B	B	B	C	D
Diesel Oil	U	A	B	U	U	U
Ethylene Acetate	NT	U	NT	U	U	U
Ethylene Glycol	B	A	A	A	A	A
Hydraulic Oil (Petroleum)	U	A	B	D	D	D
Hydrochloric Acid Cole (37% Dilute)	U	C	C	B	B	B
Isopropyl Alcohol	A	B	A	B	B	A
Lacquer Solvents	U	U	U	U	U	U
Lindol (Hydraulic Fluid)	NT	U	NT	U	U	U
MEK	U	U	U	U	U	U
Mineral Oil	C	A	B	A	B	U
Naptha	NT	C	U	U	U	U
Napthlene	U	U	U	U	U	U
Petroleum	U	C	B	D	D	D
Salt Water	A	A	B	B	B	C
Tolulene	U	U	U	U	U	U
Transmission Fluid (Type A)	U	B	A	C	U	U
Trichloroethane	U	U	U	U	U	U
Vegetable Oil	C	A	B	C	C	C

Download Chemical Resistance Guide

LITERATURE

Wearwell 2023 Digital Catalog

View Maintenance Guide

Faq's

FAQ’s

Q: What does NBR stand for?

A: NBR stands for Nitrile Rubber.

Q: What types of fluids is the NBR compound resistant to?

A: The NBR compound is resistant to silicone-based brake fluid, boric acid, ethylene glycol, animal fats, brake fluid, chlorine solution, diesel oil, petroleum-based hydraulic oil, salt water and vegetable oil.

Q: Is there edging available?

A: Yes, 3" edging is available in both yellow and black for 24/Seven LockSafe. Edging comes in both male and female to correspond with the male or female side of the mat. Edging comes in 3" wide by 36" long strips.

Q: Can 24/Seven LockSafe mats be exposed to liquids?

A: Yes, 24/Seven LockSafe mats can be placed in both wet and dry environments.

Q: How do I clean 24/SEVEN LockSafe with GRITSHIELD?

A:Sweep the surface regularly.

Q: Can you customize a mat to my specific requirements?

A: Yes we can. We offer 3 types of customization:

C1- Custom lengths

C2- Custom lengths and widths

C3- Fully custom (size & shape)

The level of customization by product is on the details tab at the bottom of every product page.

Q: Are the colors shown on your website the exact color I should expect to receive?

A: No, because monitors vary so there may be a slight variance in the color. If color choice is critical, we suggest that you order a sample. Due to manufacturing processes and material dye lots, color can vary, but our products fall within an industry-standard acceptable variation.

Q: Do 24/Seven LockSafe mats pose a tripping hazard?

A: 24/Seven LockSafe mats have a positive interlocking system, so they won't come apart. Plus! 3" ramp edging, available in yellow and black. The ramps allow for a smooth transition on and off the mat and do not pose a tripping hazard.

Q: Do your rubber mats smell?

A: Yes! Unfortunately, that rubbery smell is a feature of any rubber product. The mat should lose that smell over time. If you are planning to install rubber mats or flooring in any enclosed space, please remember that this can slow the dissipation of a strong rubber scent.

Q: What is GritShield and what does it do?

A: GRITSHIELD is a clear particulate that is added to the surface as a secondary process. GRITSHIELD increases the traction by about 30% in wet environments.
