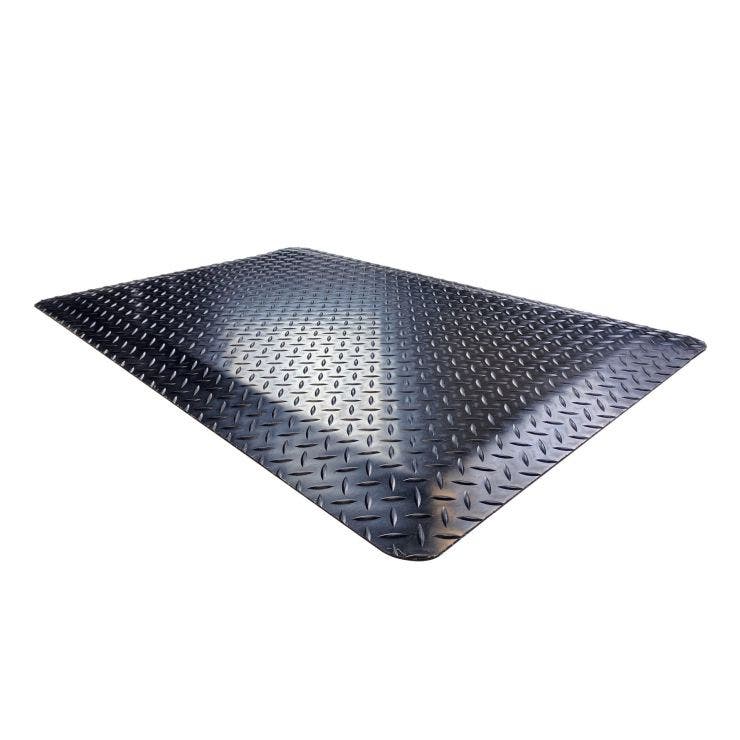

WeldSafe - Rubber Diamond-Plate SpongeCote®

SKU 446

Anti-fatigue matting for welding does exist!

Welders don't have to settle for hard concrete floors and fight their challenges alone

The Rubber DP standing mat provides stick welders with the comfort they deserve, the heat resistance they need, and the diamond-plate pattern they love.

The specially formulated rubber surface has an ignition point of over 500 degrees to ward off the damaging effects of slag, splatter, and hot swarf. Combined with Wearwell's exclusive nitrile blend sponge, Rubber DP delivers long-lasting standing comfort in welding workstations and booths.

Construction

Available Colors
Standard Sizes	Available in several standard sizes for ease of installation in common sized work stations.
Ramp	Ramps are fully integrated into the mat with bevels on the sponge.
Cut Lengths	Custom cut lengths up to 150' long are available for any of the following widths: 2', 3' and 4'
Customization	Full customization available: Any size! Any shape! For price and lead time, simply submit a drawing with dimensions to quotes@wearwell.com or contact Wearwell for assistance.
Surface Pattern	Diamond-Plate
Top Surface	High Temperature SBR Rubber
Sponge - Bottom	Exclusive Nitricell Sponge made of PVC infused with Nitrile (NBR) Rubber

Info

Warranty:	Limited Lifetime
Country of Origin:	Proudly manufactured in the USA.
Prop 65 Warning:	WARNING: This product can expose you to chemicals including Di(2-ethylhexyl) phthalate, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Applications

Suitable Environment	Dry floors with an occasional spill. Avoid constant pooling fluids. Clean with a neutral PH cleaner.
Applications	Manufacturing assembly lines airports workshops garages warehouse pick and pack commercial and retail check-out counters.

Testing

Flammability:	MVSS 302 / 'A'; Rating
Compression Deflection:	ASTM D575 - Ultra 4.6psi @ 25% =.21" distance compressed, Standard 7.2psi @ 25% =.21" distance compressed
Dielectric:	Not Rated for Switchboard Applications
ESD:	Not Rated for ESD Applications
Taber Abrasion:	ASTM D 3884 / 2% loss

Rubber DP elevates Diamond-Plate to the next level of resilience, traction, and ergonomics. More traction prevents slips; chemical resistant surface means a longer life, and an ignition point of over 500 degrees means deflected sparks and shards for welding. Wearwell’s specially created Nitricell ergonomic sponge means more energy and morale on the job, and fewer injuries associated with overall increased productivity.

Description / WeldSafe - Rubber Diamond-Plate SpongeCote®

Request a Quote or Sample:

First Name

Last Name

Company

E-mail address

Phone

Zip/Postal code

Quantities Needed or Additional Notes?

SAMPLE-12" Rubber DP SpongeCote® 7/8in x 1ft x 1ft
SAMPLE-12" Rubber DP SpongeCote® 9/16in x 1ft x 1ft

Country

Street

City

State/Province

SKU	Short Description	Color	Width	Length	Thickness	Stock Part	UOM
446.78x2x3BK	Rubber DP Spongecote Ultra Beveled Black, 7/8in x 2ft x 3ft	Black	2 Ft. (.61 m)	3 Ft. (.91 m)	7/8 In. (22 mm)	Yes	EA
446.78x3x5BK	Rubber DP Spongecote Ultra Beveled Black,7/8in x 3ft x 5ft	Black	3 Ft. (.91 m)	5 Ft. (1.52 m)	7/8 In. (22 mm)	Yes	EA
446.78x3x75BK	Rubber DP Spongecote Ultra Beveled Black,7/8in x 3ft x 75ft Full Roll	Black	3 Ft. (.91 m)	75 Ft. (22.86 m)	7/8 In. (22 mm)	Yes	EA
446.78x4x75BK	Rubber DP Spongecote Ultra Beveled Black,7/8in x 4ft x 75ft Full Roll	Black	4 Ft. (1.22 m)	75 Ft. (22.86 m)	7/8 In. (22 mm)	Yes	EA
446.916x2x3BK	Rubber DP Spongecote Beveled Black 9/16in x 2ft x 3ft	Black	2 Ft. (.61 m)	3 Ft. (.91 m)	9/16 In. (14 mm)	Yes	EA
446.916x3x5BK	Rubber DP Spongecote Beveled Black,9/16in x 3ft x 5ft	Black	3 Ft. (.91 m)	5 Ft. (1.52 m)	9/16 In. (14 mm)	Yes	EA
446.916x3x75BK	Rubber DP Spongecote Beveled Black, 9/16in x 3ft x 75ft Full Roll Anti-fatigue Matting	Black	3 Ft. (.91 m)	75 Ft. (22.86 m)	9/16 In. (14 mm)	Yes	EA
446.916x4x75BK	Rubber DP Spongecote Beveled Black,9/16in x 4ft x 75ft Full Roll	Black	4 Ft. (1.22 m)	75 Ft. (22.86 m)	9/16 In. (14 mm)	Yes	EA

Product Family		Thickness		Width		Length	Color		Product Number
415	.	916	x	3	x	10	BK	=	415.916x3x10BK

Chemical	Urethane	Nitrile	PVC	CFR	SBR	Natural Rubber	Aluminum Resistance	Polypropylene Resistance
Acetone	U	U	U	C	C	C	A	D
Animal Fats	NT	A	C	U	U	U	A	A
Bleach Solution (10% Dilute)	NT	B	B	C	C	C	D	B
Boric Acid	B	A	A	A	A	A	D	A
Brake Fluid	U	A	B	D	D	D	A	A
Brake Fluid (Silicone Based)	U	A	B	A	B	B	A	A
Chlorine Solution (3% Dilute)	C	A	B	C	C	C	D	U
Citric Acid	NT	A	C	C	C	U	B	A
Cutting Fluid (Mineral Oil Based)	U	B	B	B	C	D	A	B
Diesel Oil	U	A	B	U	U	U	A	B
Ethylene Acetate	NT	U	NT	U	U	U	A	A
Ethylene Glycol	B	A	A	A	A	A	A	A
Gasoline	U	B	B	D	D	U	A	U
Hydraulic Oil (Petroleum)	U	A	B	D	D	D	A	D
Hydrochloric Acid (37% Dilute)	U	C	C	B	B	B	U	A
Isopropyl Alcohol	A	B	A	B	B	A	A	A
Lacquer Solvents	U	U	U	U	U	U	A	D
Lindol (Hydraulic Fluid)	NT	U	NT	U	U	U	A	D
MEK (Methyl Ethyl Ketone)	U	U	U	U	U	U	B	B
Motor Oil	D	A	A	D	D	U	A	A
Mineral Oil	C	A	B	A	B	U	A	B
Naptha	NT	C	U	U	U	U	A	B
Napthlene	U	U	U	U	U	U	B	B
Petroleum	U	C	B	D	D	D	D	B
Salt Water	A	A	B	B	B	C	B	A
Strong Alkalies/Bases	D	C	B	C	C	U	U	A
Sulfuric Acid	D	B	A	D	D	C	U	A
Tolulene	U	U	U	U	U	U	A	C
Transmission Fluid (Type A)	U	B	A	C	U	U	A	A
Trichloroethane	U	U	U	U	U	U	D	C
Vegetable Oil	C	A	B	C	C	C	B	A
Water	B	A	A	A	A	A	A	A
