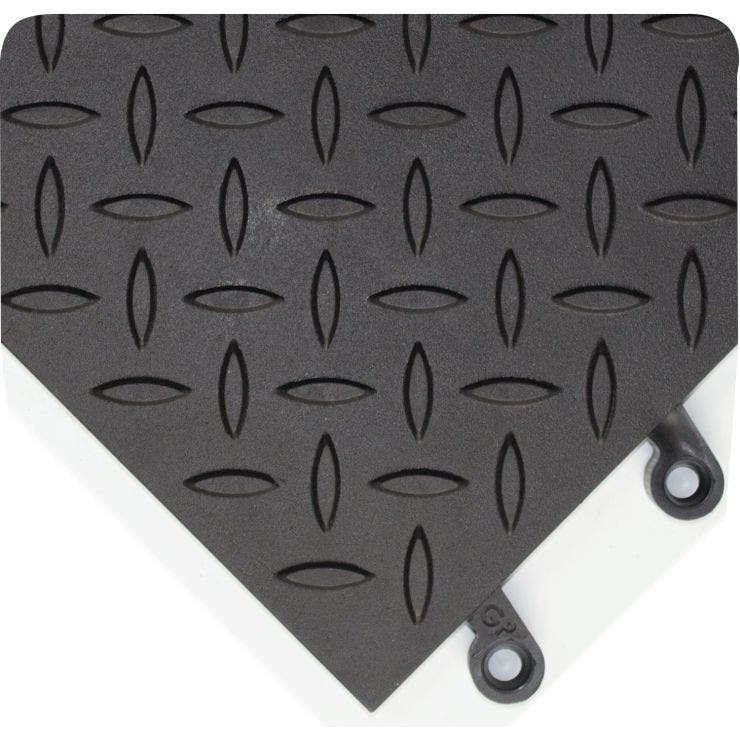

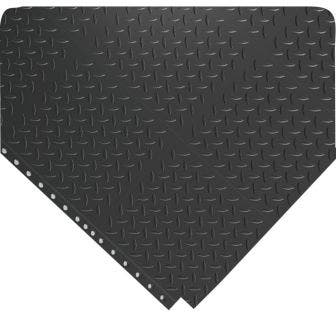

ErgoDeck MAX Diamond-Plate Modular Anti-fatigue Flooring - For Welding
Parameters of Category: Specifications - General
| Suitable Environment | Dry |
| Type | Anti-Fatigue Flooring |
| Customization Level | C3 - Full Custom (Length, Width, Shape) |
| Solid or Drainage | Solid |
| Compound | PVC/Nitrile Sponge |
| Recycled | <30% |
| Warranty | Lifetime |
Test Specification & Results
| Property | Test / Result |
|---|---|
| Flammability | MVSS 302 / 'A'; Rating |
| Taber Abrasion | ASTM D 3884 / 1% loss |
| Temperature Range | 0 to 120 F |
| Coefficient of Friction | ASTM F1677 / Dry: COF = .65 |
| Compression Deflection | ASTM D575-91 / 14.15% |
| Tear Strength | Not Available |
| ESD Rating | Not Available |
| Dielectric Strength | Not Available |
Key
- A = Performs well
- B = Slightly affected
- C = Moderately affected
- D = Highly affected
- U = Not recommended
- NT = Not tested
| Chemical | Urethane | Nitrile | PVC | CFR | SBR | Natural Rubber |
|---|---|---|---|---|---|---|
| Acetone | U | U | U | C | C | C |
| Animal Fats | NT | A | C | U | U | U |
| Bleach Solution (10% Dilute) | NT | B | B | C | C | C |
| Boric Acid | B | A | A | A | A | A |
| Brake Fluid | U | A | B | D | D | D |
| Brake Fluid (Silicone Based) | U | A | B | A | B | B |
| Chlorine Solution (3% Dilute) | C | A | B | C | C | C |
| Citric Acid | NT | A | C | C | C | U |
| Cutting Fluid (Mineral Oil Based) | U | B | B | B | C | D |
| Diesel Oil | U | A | B | U | U | U |
| Ethylene Acetate | NT | U | NT | U | U | U |
| Ethylene Glycol | B | A | A | A | A | A |
| Hydraulic Oil (Petroleum) | U | A | B | D | D | D |
| Hydrochloric Acid Cole (37% Dilute) | U | C | C | B | B | B |
| Isopropyl Alcohol | A | B | A | B | B | A |
| Lacquer Solvents | U | U | U | U | U | U |
| Lindol (Hydraulic Fluid) | NT | U | NT | U | U | U |
| MEK | U | U | U | U | U | U |
| Mineral Oil | C | A | B | A | B | U |
| Naptha | NT | C | U | U | U | U |
| Napthlene | U | U | U | U | U | U |
| Petroleum | U | C | B | D | D | D |
| Salt Water | A | A | B | B | B | C |
| Tolulene | U | U | U | U | U | U |
| Transmission Fluid (Type A) | U | B | A | C | U | U |
| Trichloroethane | U | U | U | U | U | U |
| Vegetable Oil | C | A | B | C | C | C |
Q: What are the benefits of using anti-fatigue flooring?
A: Anti-fatigue flooring is designed to offer a wide range of benefits to employees and employers. Anti-Fatigue flooring can increase worker productivity, reduce slips, trips and falls and improve the overall health of your employees.
Q: How does anti-fatigue flooring improve overall health of my employees?
A: Standing long-term, especially on hard, unforgiving concrete leads to lower back pain, swelling of joints and poor circulation that can lead to varicose veins. Standing on anti-fatigue flooring allows for continuous muscle movement which leads to increased blood flow to the legs, feet and back. Continuous blood circulation reduces fatigue, alleviates back pain and reduces swelling.
Q: How does anti-fatigue flooring increase employee productivity?
A: Fatigue eventually leads to lack of focus and concentration on the task at hand. Anti-fatigue flooring reduces worker fatigue allowing them to remain focused on the job at hand.
Q: What if one tile gets damaged?
A: Simply remove it and replace with a new tile.
Q: How do you connect a ramp to the side of the tile that has connectors?
A: Simply cut off the interlocks on the ramp.
Q: How do I cut ErgoDeck tiles?
A: ErgoDeck is a robust product. While it can be cut with a utility knife, we suggest a band saw or similar cutting equipment for larger installations.
Q: Do I need to use adhesives or special tools?
A: One of the biggest benefits of the LockSafe system is a secure, dependable connection that snaps together and holds tight in-use, but zips apart for reconfiguration or replacement! No tools are necessary for the assembly or disassembly, however, a rubber mallet is sometimes used in installation to quickly "lock" the connectors. Alternatively, they can be "locked" by walking along the edges of each tile.
Q: Can I use it over grating or catwalks?
A: ErgoDeck MAX has a sponge base for ergonomics over solid surfaces. For grating, we suggest using our ErgoDeck Heavy-Duty or Cleated products.
Q: I have a large, unique area to cover. How do I know how much product to order?
A: If you need help determining exactly how many tiles and how many feet of edging, we have field experts in your area that are happy to assist. Just inquire about our FREE Site Survey!
Q: Are the colors shown on your website the exact color I should expect to receive?
A: No, because monitors vary so there may be a slight variance in the color. If color choice is critical, we suggest that you order a sample. Due to manufacturing processes and material dye lots, color can vary, but our products fall within an industry-standard acceptable variation.
