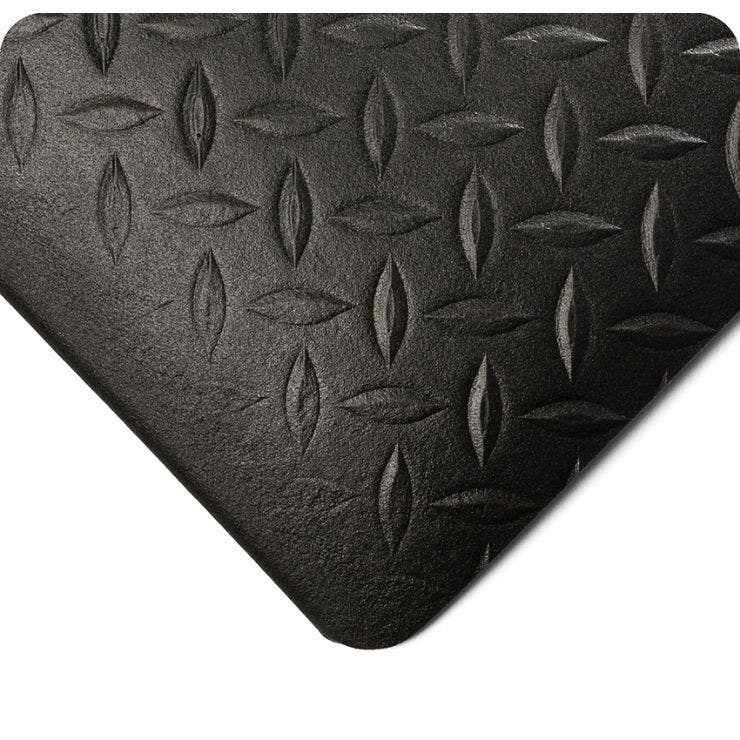

Diamond Tuf Sponge - Black

Diamond TufSponge is an excellent choice for practical and economical comfort in light industrial and commercial applications. These mats reduce floor hardness up to 50% and feature an embossed Diamond-Plate pattern and safety rounded edges. Available in standard lengths or can easily be cut on-site to fit your work areas. Read more

Economic comfort for light industrial applications
Safety rounded edges
Can easily be cut to size on-site
Overall thickness 1/2”

Show less

SKU 452BK

In stock

Width

Length

Quantity - +

Select a Sample

SAMPLE-12" Diamond Tuf Sponge Black 1/2in x 12in x 12in

The sample was successfully added to your cart.

Download a Product Details Spec Sheet

Download Spec

Part Numbers

SKU	Short Description	Color	Thickness	Dimensions	Stock Part	UOM
452.12x2x3BK	Diamond Tuf Sponge	Black	1/2"	2' x 3'	Yes	EA
452.12x2x60BK	Diamond Tuf Sponge	Black	1/2"	2' x 60'	Yes	RL
452.12x3x5BK	Diamond Tuf Sponge	Black	1/2"	3' x 5'	Yes	EA
452.12x3x60BK	Diamond Tuf Sponge	Black	1/2"	3' x 60'	Yes	RL
452.12x4x60BK	Diamond Tuf Sponge	Black	1/2"	4' x 60'	Yes	RL

Putting Together Wearwell Part Numbers See an example of how Wearwell puts together their part numbers.

Product Family		Thickness		Width		Length	Color		Product Number
ML414	.	1516	x	2	x	10	BK	=	ML414.1516x2x10BK

Fast Facts

DETAILS & COMPOSITION

Environment	Dry
Wearwell Categories	Anti-Fatigue Matting
Customization Level	C1 - Custom Length
Solid or Drainage	Solid
Compound	PVC Sponge
Recycled	<10%
Warranty	1 Year
WARNING

TEST RESULTS

Property	Test / Result
Flammability	DOC FF1-70 / Flame Retardant Rating
Taber Abrasion	Fed Std. 191 Modified / 2% lost @ 1,000 cycles
Temperature Range	0 to 110 F
Coefficient of Friction	ASTM F1677 / Dry: COF = .94 / Wet: COF = .72
Compression Deflection	ASTM D575 / .205 @ 35 psi
Tear Strength	Not Available
ESD Rating	Not Available
Dielectric Strength	Not Available

Chemical Resistance

Key

A = Performs well
B = Slightly affected
C = Moderately affected
D = Highly affected
U = Not recommended
NT = Not tested

Chemical	Urethane	Nitrile	PVC	CFR	SBR	Natural Rubber
Acetone	U	U	U	C	C	C
Animal Fats	NT	A	C	U	U	U
Bleach Solution (10% Dilute)	NT	B	B	C	C	C
Boric Acid	B	A	A	A	A	A
Brake Fluid	U	A	B	D	D	D
Brake Fluid (Silicone Based)	U	A	B	A	B	B
Chlorine Solution (3% Dilute)	C	A	B	C	C	C
Citric Acid	NT	A	C	C	C	U
Cutting Fluid (Mineral Oil Based)	U	B	B	B	C	D
Diesel Oil	U	A	B	U	U	U
Ethylene Acetate	NT	U	NT	U	U	U
Ethylene Glycol	B	A	A	A	A	A
Hydraulic Oil (Petroleum)	U	A	B	D	D	D
Hydrochloric Acid Cole (37% Dilute)	U	C	C	B	B	B
Isopropyl Alcohol	A	B	A	B	B	A
Lacquer Solvents	U	U	U	U	U	U
Lindol (Hydraulic Fluid)	NT	U	NT	U	U	U
MEK	U	U	U	U	U	U
Mineral Oil	C	A	B	A	B	U
Naptha	NT	C	U	U	U	U
Napthlene	U	U	U	U	U	U
Petroleum	U	C	B	D	D	D
Salt Water	A	A	B	B	B	C
Tolulene	U	U	U	U	U	U
Transmission Fluid (Type A)	U	B	A	C	U	U
Trichloroethane	U	U	U	U	U	U
Vegetable Oil	C	A	B	C	C	C

Download Chemical Resistance Guide

LITERATURE

Wearwell 2023 Digital Catalog

View Maintenance Guide

Faq's

FAQ’s

Q: If I purchase a full roll, will I be able to cut it to the lengths that I need?

A:Yes, you can! It's very easy to cut this material to size. All you need is a straight edge and a pair of shears. Safety first! Always wear cut resistant gloves when cutting.

Q: What's the life expectancy of this product?

A:The life expectancy can vary dramatically depending on a multitude of factors such as: foot traffic, number of shifts, excessive temperatures, cleaning and maintenance schedule, compound, etc. The following are general guidelines based on our customers’ experience (your experience may vary): Average lifespan is 6-12 months.

Q: Is this product available in longer lengths than 60ft?

A:Stocked rolls are 60ft but longer lengths may be available as a special run. Please call our Customer Service Team to obtain details.
