Electrically Conductive, Smooth

Name: Electrically Conductive, Smooth
SKU: 786-SM
Price: 151.58 USD
Availability: InStock

SKU 786-SM

Electrically Conductive Anti-Fatigue effectively protects sensitive and dramatically reduces fatigue. Read more

"Best" sponge base

NSFI Certified

Nitricell sponge base delivers 2X the resilience and 3X the life of typical sponges

Available in Smooth and Diamond Plate surface pattern

Lay-flat design and up to 20% more standing area than look-alikes

Overall thickness, Standard 9/16” or UltraSoft 15/16”

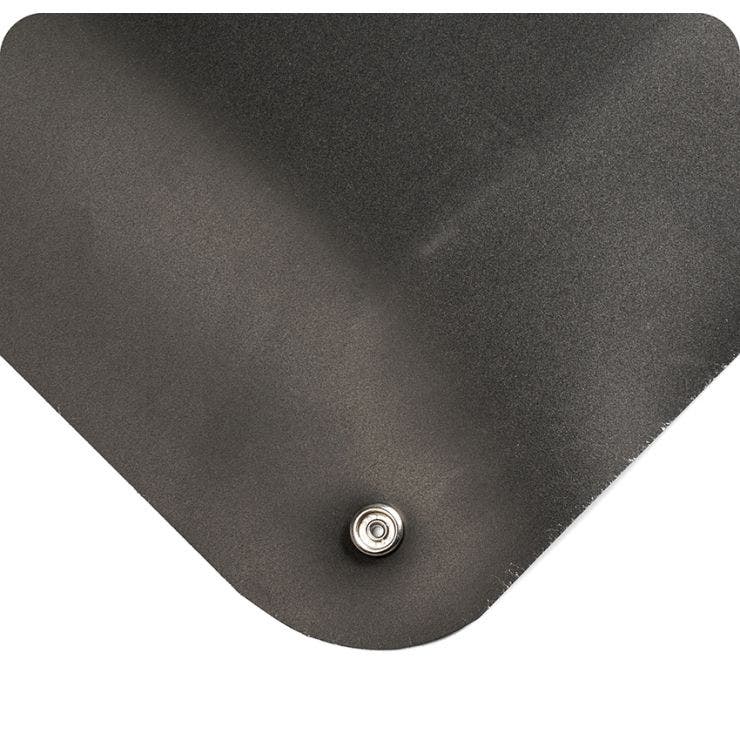

Grounding snap is attached to the corner of each mat (NOTE: Mat must be grounded with a ground cord; workers must wear Heel Grounder or shoes with conductive soles)

Show less

Product Specifications

Construction
Info
Applications
Testing

Construction

Available Colors
Standard Sizes	Available in several standard sizes for ease of installation in common sized work stations.
Ramp	Ramps are fully integrated into the mat with bevels on the sponge.
Cut Lengths	Custom cut lengths up to 150' long are available for any of the following widths: 2', 3' and 4'
Customization	Full customization available: Any size! Any shape! For price and lead time, simply submit a drawing with dimensions to quotes@wearwell.com or contact Wearwell for assistance.
Surface Pattern	Smooth

Info

Warranty:	1 Year
Country of Origin:	Proudly manufactured in the USA.
Prop 65 Warning:	WARNING: This product can expose you to chemicals including Di(2-ethylhexyl) phthalate, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Applications

Suitable Environment	Wet or Dry floors or where common inorganic acids, bases, salts, fats, oils, and many alcohols are present. Avoid aromatic hydrocarbons, concentrated acids and bases.
Applications	Manufacturing assembly lines airports workshops garages warehouse pick and pack metal fabrication machine shops.

Testing

Flammability:	MVSS 302 / 'A'; Rating
Compression Deflection:	ASTM D575 - 9/16 = 9.5psi @ 25% =.14" distance compressed and 15/16 = 7psi @ 25% =.21" distance compressed
Dielectric:	Not Rated for Switchboard Applications
ESD:	EOS/ESD S7.1: 1x10^3-1x10^6 (meets ANSI/ESD 20.20 requirements)
Taber Abrasion:	ASTM D 3884 / 1% loss

Width

Length

Thickness

Quantity - +

Need Help?

Buy From a Distributor

Wearwell products are available through select distributors across North America, including MATSonline, MSC, Fastenal, Vallen, Motion Industries, WESCO, NEXT Industries, Uline, American Floor Mats, RS Hughes and Tenaquip in Canada. Or you can purchase Wearwell online by clicking the "Buy Now" button.

Select a Sample

SAMPLE-12" Electrically Conductive Anti-Fatigue Smooth Black 15/16in x 12in x 12in

SAMPLE-12" Electrically Conductive Anti-Fatigue Smooth Black

The sample was successfully added to your cart.

Download a Product Details Spec Sheet

Download Spec

Part Numbers

SKU	Short Description	Color	Width	Length	Thickness	Stock Part	UOM
786.1516x2x3SMBK	UltraSoft Electrically Conductive Anti-Fatigue Smooth	Black	2 Ft. (.61 m)	3 Ft. (.91 m)	15/16 In. (24 mm)	Yes	EA
786.1516x3x5SMBK	UltraSoft Electrically Conductive Anti-Fatigue Smooth	Black	3 Ft. (.91 m)	5 Ft. (1.52 m)	15/16 In. (24 mm)	Yes	EA
786.1516x3x75SMBK	Electrically Conductive Anti-Fatigue UltraSoft,Smooth w/Snap Black,15/16in (approx) x 3ft x 75ft	Black	3 Ft. (.91 m)	75 Ft. (22.86 m)	15/16 In. (24 mm)	No	RL
786.1516x4x75SMBK	Electrically Conductive UltraSoft Anti-Fatigue,Smooth w/Snap Attached Lower Left,Corner, Black,15/16in (approx) x 4ft x 75ft	Black	4 Ft. (1.22 m)	75 Ft. (22.86 m)	15/16 In. (24 mm)	Yes	RL
786.916x2x3SMBK	Electrically Conductive Anti-Fatigue Smooth	Black	2 Ft. (.61 m)	3 Ft. (.91 m)	9/16 In. (14 mm)	Yes	EA
786.916x3x5SMBK	Electrically Conductive Anti-Fatigue Smooth	Black	3 Ft. (.91 m)	5 Ft. (1.52 m)	9/16 In. (14 mm)	Yes	EA
786.916x3x75SMBK	Electrically Conductive Anti-Fatigue Smooth	Black	3 Ft. (.91 m)	75 Ft. (22.86 m)	9/16 In. (14 mm)	No	RL
786.916x4x75SMBK	Electrically Conductive UltraSoft Anti-Fatigue,Smooth w/Snap Attached Lower Left,Corner, Black,15/16in (approx) x 4ft x 75ft	Black	4 Ft. (1.22 m)	75 Ft. (22.86 m)	9/16 In. (14 mm)	Yes	RL

Ramps and accessories

SKU	Short Description	Color	Length	Stock Part	UOM
Other

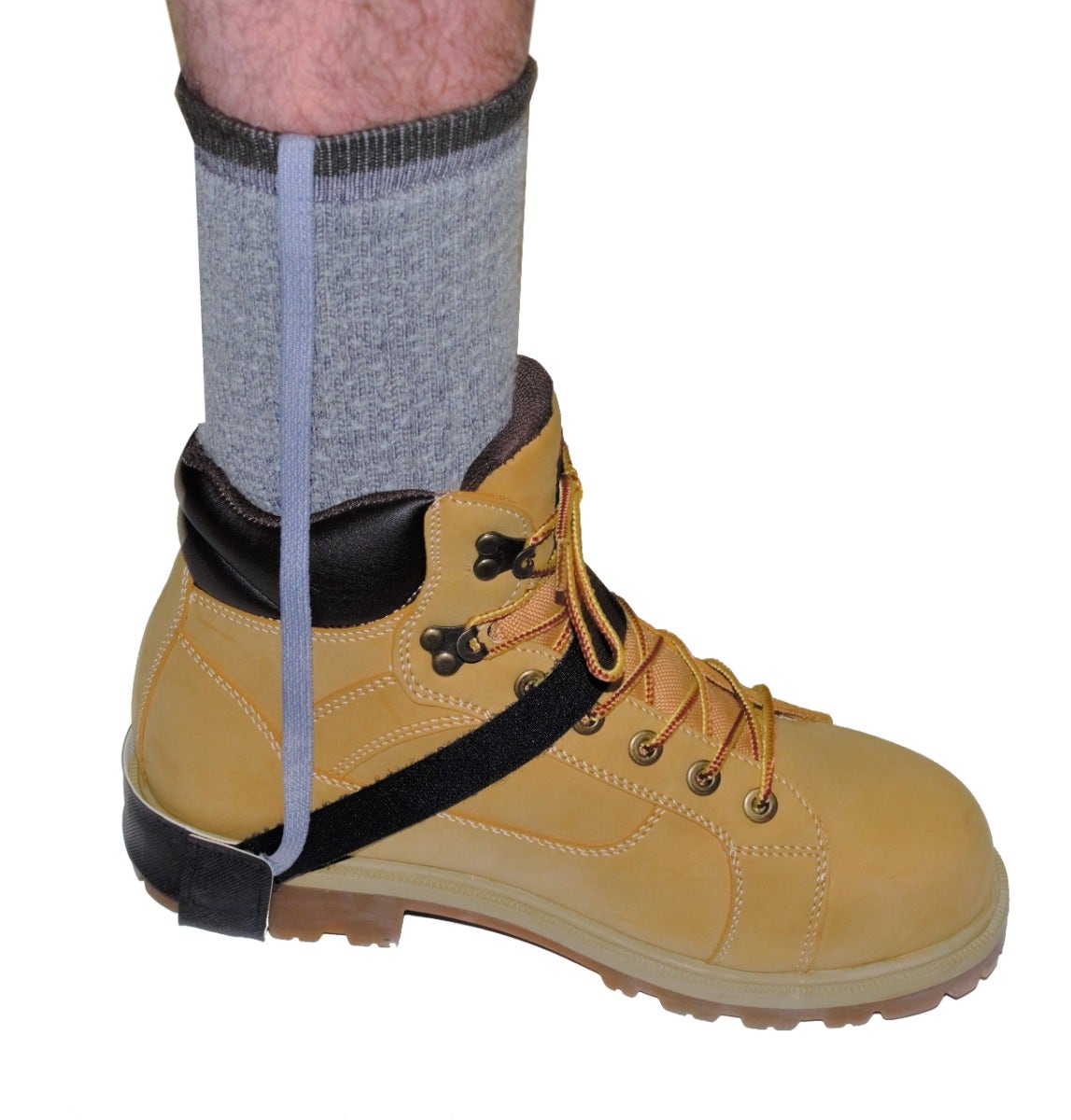

793.HG	Made for workers wearing insulative shoes, the Heel Grounder allows static electricity to pass from the worker to the ESD matting or flooring.	Black	0 (0 )	Yes	EA

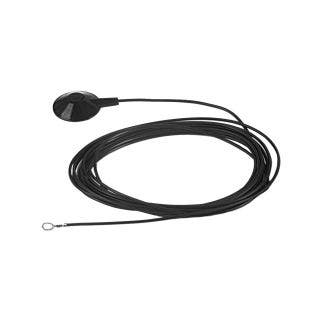

793.15Cord	The 15' (4.6m) - long ESD Ground Cord is used to connect ESD tabletop and floor mats to ground. The molded-in fastener has an integral one-mega-ohm resistor, conforms to 10mm snaps, and features a solderless terminal. Can be used with all conductive mats.	Black	15 Ft. (4.57 m)	Yes	EA

Putting Together Wearwell Part Numbers See an example of how Wearwell puts together their part numbers.

Product Family		Thickness		Width		Length	Color		Product Number
415	.	916	x	3	x	10	BK	=	415.916x3x10BK

Chemical Resistance

Key

A = Performs well
B = Slightly affected
C = Moderately affected
D = Highly affected
U = Not recommended
NT = Not tested

Chemical	Urethane	Nitrile	PVC	CFR	SBR	Natural Rubber	Aluminum Resistance	Polypropylene Resistance
Acetone	U	U	U	C	C	C	A	D
Animal Fats	NT	A	C	U	U	U	A	A
Bleach Solution (10% Dilute)	NT	B	B	C	C	C	D	B
Boric Acid	B	A	A	A	A	A	D	A
Brake Fluid	U	A	B	D	D	D	A	A
Brake Fluid (Silicone Based)	U	A	B	A	B	B	A	A
Chlorine Solution (3% Dilute)	C	A	B	C	C	C	D	U
Citric Acid	NT	A	C	C	C	U	B	A
Cutting Fluid (Mineral Oil Based)	U	B	B	B	C	D	A	B
Diesel Oil	U	A	B	U	U	U	A	B
Ethylene Acetate	NT	U	NT	U	U	U	A	A
Ethylene Glycol	B	A	A	A	A	A	A	A
Gasoline	U	B	B	D	D	U	A	U
Hydraulic Oil (Petroleum)	U	A	B	D	D	D	A	D
Hydrochloric Acid (37% Dilute)	U	C	C	B	B	B	U	A
Isopropyl Alcohol	A	B	A	B	B	A	A	A
Lacquer Solvents	U	U	U	U	U	U	A	D
Lindol (Hydraulic Fluid)	NT	U	NT	U	U	U	A	D
MEK (Methyl Ethyl Ketone)	U	U	U	U	U	U	B	B
Motor Oil	D	A	A	D	D	U	A	A
Mineral Oil	C	A	B	A	B	U	A	B
Naptha	NT	C	U	U	U	U	A	B
Napthlene	U	U	U	U	U	U	B	B
Petroleum	U	C	B	D	D	D	D	B
Salt Water	A	A	B	B	B	C	B	A
Strong Alkalies/Bases	D	C	B	C	C	U	U	A
Sulfuric Acid	D	B	A	D	D	C	U	A
Tolulene	U	U	U	U	U	U	A	C
Transmission Fluid (Type A)	U	B	A	C	U	U	A	A
Trichloroethane	U	U	U	U	U	U	D	C
Vegetable Oil	C	A	B	C	C	C	B	A
Water	B	A	A	A	A	A	A	A

Download Chemical Resistance Guide

LITERATURE

ESD-Conductive Laminated Warranty

Wearwell Digital Catalog

View Maintenance Guide

Faq's

FAQ’s

Q: What is an NFSI Certification?

A: These products have been tested by the National Floor Safety Institute per the NFSI 101-C Test Method and have passed the NFSI “High-Traction” standard.

Q: Do I need conductive or Static Dissipative flooring?

A: From a technical point of view, the answer is to confirm the OHM rating required by your application, then choose the product that meets your required OHM rating. Conductive products have a lower OHM rating. That means that there is less resistance and therefore, conductive products will allow static electricity to ground out faster than a static dissipative product, which has a higher OHM rating, and therefore higher resistance.

Q: What does the OHM rating tell me?

A: An OHM is a unit of measure that defines electrical resistance between two points. The lower the OHM reading the lower the resistance to electricity passing through and therefore the faster electricity can pass through to ground. There is a specific range of OHM ratings that define the difference between a conductive product and a static dissipative product. Choose the product which has an OHM rating that meets the requirements of your application.

Q: What is ESD?

A: ESD (Electrostatic discharge) is the sudden flow of electricity between two electrically charged objects caused by contact. ESD is the cause for that annoying "zap" you get when you reach for a metal door handle. Your body and clothing accumulate static electricity. That static electricity desperately wants to reach a ground point. ESD matting and flooring is intended to prevent unintentional discharges of static electricity by creating a path to ground through your body and out through the mat or floor for static electricity that is accumulated in your body and clothing.

Q: Do I still need heel grounding straps?

A: To allow the flow of electricity to reach a ground source, a heel strap must be worn if the operator is wearing non-conductive soled shoes.

Q: Are the colors shown on your website the exact color I should expect to receive?

A: No, because monitors vary so there may be a slight variance in the color. If color choice is critical, we suggest that you order a sample. Due to manufacturing processes and material dye lots, color can vary, but our products fall within an industry-standard acceptable variation.
