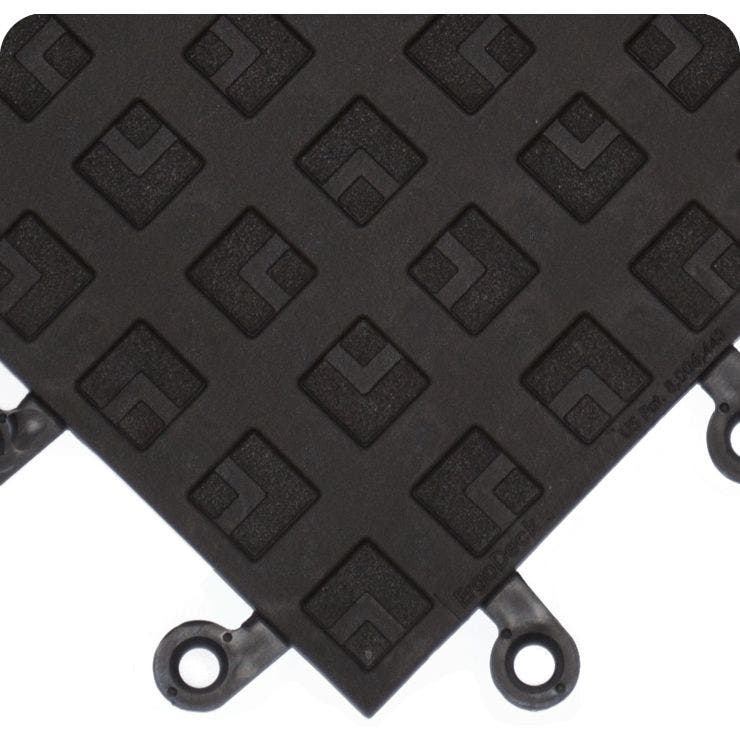

ErgoDeck ESD
Static electricity is created by two materials rubbing together, and seeks a path to ground — often through the human body or through sensitive, conductive equipment. The best way to eliminate these risks is to create a static-dissipative environment. ErgoDeck ESD – a comprehensive flooring solution – offers the best defense. Used over conductive sub-flooring, ErgoDeck ESD is your best defense against fatigue and static shock that could compromise the quality of your products. Made of a proprietary TPO/Carbon blend, the ESD properties are throughout the entire tile. Must be used over conductive flooring. Positive interlocks stay secure, ensuring areas of any size are protected When installed wall-to-wall, ramps and corners aren’t necessary. For transition areas use ErgoDeck’s standard, universal ramps.
NOTE: Wear a heel grounder (793-Heel)
Read more- U.S. PATENT NO. D502,557; D520,650
- Standing relief in static sensitive applications
- EOS/ESD S7.1: 1x10^6-1x10^9 (meets ANSI/ESD 20.20 requirements)
- Use over conductive floor
- Positive Interlocking System prevents separation
- Easily replace single pieces or sections as needed to reduce costs
- Carbon impregnated TPO tiles provide maximum durability
- Overall thickness 7/8”
Learn more about our ESD flooring and matting solutions in our blog - ESD 101: Everything You Need to Know About ESD Mats, Flooring, and Work Surfaces.
Show lessSKU 557
In stock
Buy Now Wearwell products are available through select distributors across North America, including MATSonline, MSC, Fastenal, Vallen, Motion Industries, WESCO, Uline, Americal Floor Mats, RS Hughes and Tenaquip in Canada. Or you can purchase Wearwell online by clicking the "Buy Now" button.
×
Select a Sample
The sample was successfully added to your cart.
Enter the width and length of the installation area.
| Width (ft) Width (m) | Length (ft) Length (m) | Square Footage of Flooring Square Meters of Flooring | ||
| × | = | 50 |
Length entered should be the total feet of edging for all ramped sides.
Length entered should be the total meters of edging for all ramped sides.
| Length (ft) Length (m) | Linear Footage of Edging Linear Meters of Edging | |
| = | 40 |
If you would like to receive a copy of this report please submit the below form
×
Thank you for the request. The Estimates are sent to your email. Kindly reach out to us for any queries here.
Find details here.Need help with the purchase? find details here
| SKU | Short Description | Color | Width | Length | Height | Thickness | Stock Part | UOM |
|---|---|---|---|---|---|---|---|---|
| 557.78x18x18BK-CS10 | NEW!! ErgoDeck ESD Solid | Black | 18 In. (46 cm) | 18 In. (46 cm) | 7/8 In. (22 mm) | Yes | CS-10 |
Ramps and accessories
| SKU | Short Description | Color | Width | Length | Height | Thickness | Stock Part | UOM |
|---|---|---|---|---|---|---|---|---|
| Ramp | ||||||||
| 560.78x6x18BK-CS10 | ErgoDeck heavy duty ramps provide a professional finish and a smooth on-off transition for your ErgoDeck flooring. These ramps work to prevent trips while outlining a perimeter of a workspace. | Black | 6 In. (15 cm) | 18 In. (46 cm) | 7/8 In. (22 mm) | Yes | CS-10 | |
| 560.78x6x36AL | Tough environments demand even tougher edging. ErgoDeck® Aluminum Ramps - are high-strength, lightweight, and chemical resistant ramps that create a gradual transition for any ErgoDeck® flooring system - not to mention a sleek design look. | Aluminum | 6 In. (15 cm) | 36 In. (91 cm) | 7/8 In. (22 mm) | Yes | EA | |
| 560.78x6x18YL-CS10 | ErgoDeck ramps | Yellow | 6 In. (15 cm) | 18 In. (46 cm) | 7/8 In. (22 mm) | Yes | CS-10 | |
| 561.78x6x18BK-CS10 | ErgoDeck Heavy Duty with Grit Shield Ramp Black Case | Black | 6 In. (15 cm) | 18 In. (46 cm) | 7/8 In. (22 mm) | No | CS-10 | |
| Outside corner | ||||||||
| 560.78x6x15x15BK-CS4 | ErgoDeck Outside Corner | Black | 6 In. (15 cm) | 15 In. (38 cm) | 7/8 In. (22 mm) | Yes | CS-4 | |
| 560.78x6x15x15YL-CS4 | ErgoDeck Outside Corner | Yellow | 6 In. (15 cm) | 15 In. (38 cm) | 7/8 In. (22 mm) | Yes | CS-4 | |
| 561.78x6x15x15BK-CS4 | ErgoDeck Heavy Duty with Grit Shield Outside Corner Black | Black | 6 In. (15 cm) | 15 In. (38 cm) | 7/8 In. (22 mm) | No | CS-4 | |
| 560.78x6x15x15AL | Tough environments demand even tougher edging. ErgoDeck® Aluminum Ramps - are high-strength, lightweight, and chemical resistant ramps that create a gradual transition for any ErgoDeck® flooring system - not to mention a sleek design look. | Aluminum | 6 In. (15 cm) | 15 In. (38 cm) | 7/8 In. (22 mm) | Yes | EA | |
| Inside corner | ||||||||
| 560.78x6x9x9BK | The ErgoDeck inside corner allows for any possible configuration of ErgoDeck. Wearwell’s inside corner fits snug, preventing trips and calling out the perimeter of the workspace. | Black | 6 In. (15 cm) | 9 In. (23 cm) | 7/8 In. (22 mm) | Yes | EA | |
| 560.78x6x9x9YL | ErgoDeck Inside Corner | Yellow | 6 In. (15 cm) | 9 In. (23 cm) | 7/8 In. (22 mm) | Yes | EA | |
| 561.78x6x9x9BK | ErgoDeck Heavy Dutywith Grit Shield Inside Corner Black | Black | 6 In. (15 cm) | 9 In. (23 cm) | 7/8 In. (22 mm) | No | EA | |
| 560.78x6x9x9AL | Tough environments demand even tougher edging. ErgoDeck® Aluminum Ramps - are high-strength, lightweight, and chemical resistant ramps that create a gradual transition for any ErgoDeck® flooring system - not to mention a sleek design look. | Aluminum | 6 In. (15 cm) | 9 In. (23 cm) | 7/8 In. (22 mm) | Yes | EA | |
| Product Family | Thickness | Width | Length | Color | Product Number | ||||
| 415 | . | 916 | x | 3 | x | 10 | BK | = | 415.916x3x10BK |
DETAILS & COMPOSITION
| Suitable Environment | Dry Floors |
| Wearwell Categories | Anti-Fatigue ESD Flooring |
| Customization Options | C3 - Full Custom (Length, Width, Shape) |
| Solid or Drainage | Solid |
| Material | Carbon impregnated TPO |
| Recycled | |
| Warranty | 1 Year |
| WARNING |
|
TEST RESULTS
| Property | Test / Result |
|---|---|
| Flammability | MVSS 302 / 'A'; Rating |
| Taber Abrasion | ASTM D 3884 / 1% loss |
| Temperature Range | 0 to 120 F |
| Coefficient of Friction | ASTM F1677 / Dry: COF = .65 / Wet: COF = .42 |
| Compression Deflection | ASTM D575 - 27 psi @ 7.5% =.06" distance compressed |
| Tear Strength | Not Available |
| ESD Rating | EOS/ESD S7.1: 1x10^6-1x10^9 (meets ANSI/ESD 20.20 requirements) |
| Dielectric Strength | Not Available |
Key
- A = Performs well
- B = Slightly affected
- C = Moderately affected
- D = Highly affected
- U = Not recommended
- NT = Not tested
| Chemical | Urethane | Nitrile | PVC | CFR | SBR | Natural Rubber |
|---|---|---|---|---|---|---|
| Acetone | U | U | U | C | C | C |
| Animal Fats | NT | A | C | U | U | U |
| Bleach Solution (10% Dilute) | NT | B | B | C | C | C |
| Boric Acid | B | A | A | A | A | A |
| Brake Fluid | U | A | B | D | D | D |
| Brake Fluid (Silicone Based) | U | A | B | A | B | B |
| Chlorine Solution (3% Dilute) | C | A | B | C | C | C |
| Citric Acid | NT | A | C | C | C | U |
| Cutting Fluid (Mineral Oil Based) | U | B | B | B | C | D |
| Diesel Oil | U | A | B | U | U | U |
| Ethylene Acetate | NT | U | NT | U | U | U |
| Ethylene Glycol | B | A | A | A | A | A |
| Hydraulic Oil (Petroleum) | U | A | B | D | D | D |
| Hydrochloric Acid Cole (37% Dilute) | U | C | C | B | B | B |
| Isopropyl Alcohol | A | B | A | B | B | A |
| Lacquer Solvents | U | U | U | U | U | U |
| Lindol (Hydraulic Fluid) | NT | U | NT | U | U | U |
| MEK | U | U | U | U | U | U |
| Mineral Oil | C | A | B | A | B | U |
| Naptha | NT | C | U | U | U | U |
| Napthlene | U | U | U | U | U | U |
| Petroleum | U | C | B | D | D | D |
| Salt Water | A | A | B | B | B | C |
| Tolulene | U | U | U | U | U | U |
| Transmission Fluid (Type A) | U | B | A | C | U | U |
| Trichloroethane | U | U | U | U | U | U |
| Vegetable Oil | C | A | B | C | C | C |
Lifetime Warranty FAQ’s
Q: Do I need conductive or Static Dissipative flooring?
A: From a technical point of view, the answer is to confirm the OHM rating required by your application, then choose the product that meets your required OHM rating. Conductive products have a lower OHM rating. That means that there is less resistance and therefore, conductive products will allow static electricity to ground out faster than a static dissipative product, which has a higher OHM rating, and therefore higher resistance.
Q: What does the OHM rating tell me?
A: An OHM is a unit of measure that defines electrical resistance between two points. The lower the OHM reading the lower the resistance to electricity passing through and therefore the faster electricity can pass through to ground. There is a specific range of OHM ratings that define the difference between a conductive product and a static dissipative product. Choose the product which has an OHM rating that meets the requirements of your application.
Q: What is ESD?
A: ESD (Electrostatic discharge) is the sudden flow of electricity between two electrically charged objects caused by contact. ESD is the cause for that annoying "zap" you get when you reach for a metal door handle. Your body and clothing accumulate static electricity. That static electricity desperately wants to reach a ground point. ESD matting and flooring is intended to prevent unintentional discharges of static electricity by creating a path to ground through your body and out through the mat or floor for static electricity that is accumulated in your body and clothing.
Q: Do I still need heel grounding straps?
A: To allow the flow of electricity to reach a ground source, a heel strap must be worn if the operator is wearing non-conductive soled shoes.
