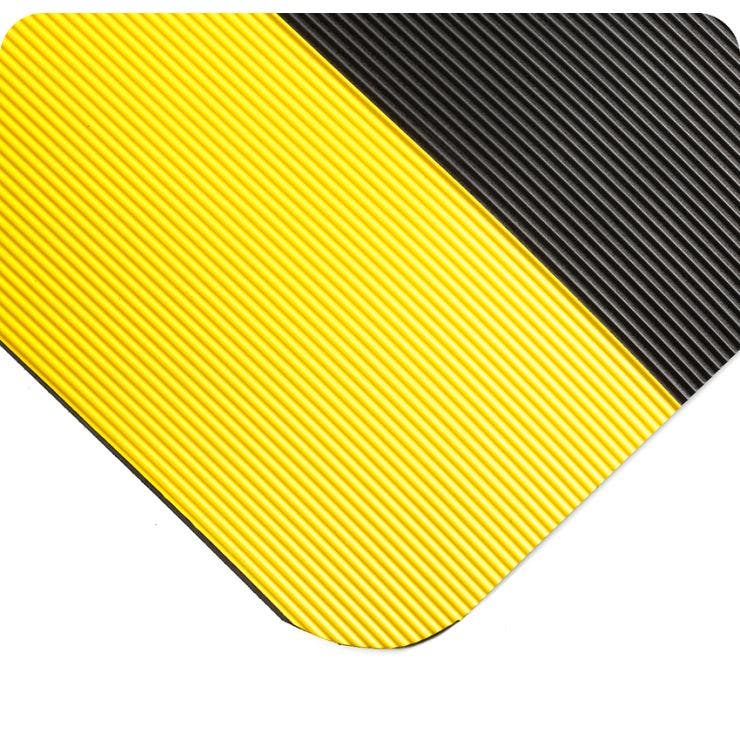

Double Duty Anti-Fatigue Switchboard Corrugated Mat - Black w/ Yellow Borders

Name: Double Duty Anti-Fatigue Switchboard Corrugated Mat - Black w/ Yellow Borders
SKU: 720BYL
Availability: InStock

Double-Duty® Switchboard non-conductive floor matting is a Wearwell original that features a non-conductive corrugated or "ribbed" surface, insulating users from high voltage shock. This unique non-conductive anti-fatigue mat features a premium Nitricell sponge base, making it first in class for comfort and safety. It provides longstanding fatigue relief in areas requiring extended standing. Common in military, mining, and industrial applications. Double-Duty Switchboard offers the best of both safety and ergonomics.

It's Double-Duty® because it's an anti-fatigue mat and a switchboard mat. Double Duty provides safety and anti-fatigue support for workers in high-voltage environments. Made in USA.

“Best” sponge base
NFSI (National Floor Safety Institute) Certified
Surface conforms to ANSI/ASTM D178 01, Type II, Class 2: 30,000 volts
Recommended Max Usage up to 17,000 volts
Nitricell sponge base delivers 2X the resilience and 3X the life of typical sponges
Lay-flat design and up to 20% more standing area than look-alikes
Meant for use in dry, indoor areas
Overall thickness 5/8”
Need a different size? 1’ incremental lengths are available! Simply give us a shout out!

Show less

SKU 720BYL

In stock

Length

Quantity - +

Buy Now

Select a Sample

SAMPLE-12" Double Duty Switchboard Corrugated Black

The sample was successfully added to your cart.

Download a Product Details Spec Sheet

Download Spec

Part Numbers

SKU	Short Description	Color	Thickness	Dimensions	Stock Part	UOM
720.58x3X5BYL	Double Duty Switchboard Corrugated Mat	Black/Yellow	5/8"	3' x 5'	Yes	EA
720.58x3X75BYL	Double Duty Switchboard Corrugated Mat	Black/Yellow	5/8"	3' x 75'	Yes	RL

Putting Together Wearwell Part Numbers See an example of how Wearwell puts together their part numbers.

Product Family		Thickness		Width		Length	Color		Product Number
ML414	.	1516	x	2	x	10	BK	=	ML414.1516x2x10BK

Fast Facts

DETAILS & COMPOSITION

Environment	Dry
Wearwell Categories	Non-Conductive Anti-Fatigue Matting
Customization Level	C1 - Custom Length
Solid or Drainage	Solid
Compound	PVC Surface With Nitrile Infused Sponge
Recycled	<10%
Warranty	1 Year
WARNING	WARNING: This product can expose you to chemicals including Di(2-ethylhexyl) phthalate, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

TEST RESULTS

Property	Test / Result
Flammability	ASTM D178-01: 0.224 mm /s
Taber Abrasion	Fed. Std. 191: 1% lost @ 1,000 cycles
Temperature Range	Not Available
Coefficient of Friction	ASTM F1677: Dry COF .91
Compression Deflection	Not Available
Tear Strength	ASTM D412-98a Die C 1212 psi
ESD Rating	Not Applicable
Dielectric Strength	Surface conforms to ANSI/ASTM D178 01, Type II, Class 2: 30,000 volts. (Recommended Max Usage up to 17,000 volts)

Chemical Resistance

Key

A = Performs well
B = Slightly affected
C = Moderately affected
D = Highly affected
U = Not recommended
NT = Not tested

Chemical	Urethane	Nitrile	PVC	CFR	SBR	Natural Rubber
Acetone	U	U	U	C	C	C
Animal Fats	NT	A	C	U	U	U
Bleach Solution (10% Dilute)	NT	B	B	C	C	C
Boric Acid	B	A	A	A	A	A
Brake Fluid	U	A	B	D	D	D
Brake Fluid (Silicone Based)	U	A	B	A	B	B
Chlorine Solution (3% Dilute)	C	A	B	C	C	C
Citric Acid	NT	A	C	C	C	U
Cutting Fluid (Mineral Oil Based)	U	B	B	B	C	D
Diesel Oil	U	A	B	U	U	U
Ethylene Acetate	NT	U	NT	U	U	U
Ethylene Glycol	B	A	A	A	A	A
Hydraulic Oil (Petroleum)	U	A	B	D	D	D
Hydrochloric Acid Cole (37% Dilute)	U	C	C	B	B	B
Isopropyl Alcohol	A	B	A	B	B	A
Lacquer Solvents	U	U	U	U	U	U
Lindol (Hydraulic Fluid)	NT	U	NT	U	U	U
MEK	U	U	U	U	U	U
Mineral Oil	C	A	B	A	B	U
Naptha	NT	C	U	U	U	U
Napthlene	U	U	U	U	U	U
Petroleum	U	C	B	D	D	D
Salt Water	A	A	B	B	B	C
Tolulene	U	U	U	U	U	U
Transmission Fluid (Type A)	U	B	A	C	U	U
Trichloroethane	U	U	U	U	U	U
Vegetable Oil	C	A	B	C	C	C

Download Chemical Resistance Guide

LITERATURE

Wearwell 2023 Digital Catalog

View Maintenance Guide

Faq's

FAQ’s

Q: What is an NFSI Certification?

A: These products have been tested by the National Floor Safety Institute per the NFSI 101-C Test Method and have passed the NFSI “High-Traction” standard.

Q: What is Switchboard matting?

A: Also referred to as non-conductive matting, these products serve as an insulative barrier to protect personnel from dangerous and deadly shock. It's commonly used around high voltage areas, fuse boxes, switchgear, control panels and heavy machinery.

Q: How is the electrical insulation value of the matting rated?

A: In accordance with Mil Spec 15562-G Amend. 3, Type I with a dielectric strength of 30,000 volts.

Q: How often should switchboard matting be replaced?

A: All switchboard matting should be inspected and/or replaced every year to ensure the safety of personnel.

Q: Are the colors shown on your website the exact color I should expect to receive?

A: No, because monitors vary so there may be a slight variance in the color. If color choice is critical, we suggest that you order a sample. Due to manufacturing processes and material dye lots, color can vary, but our products fall within an industry-standard acceptable variation.
