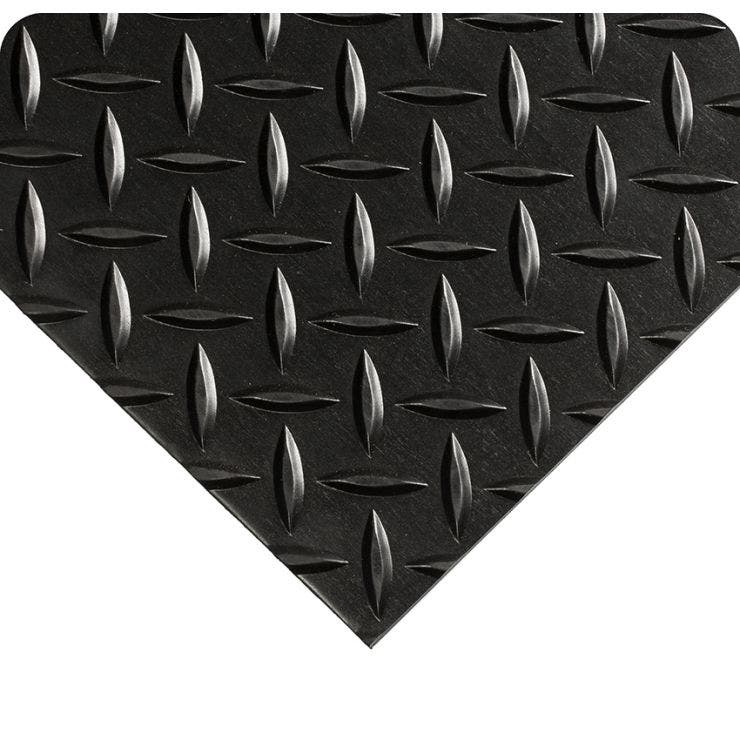

Diamond-Plate Switchboard Matting - Black

Diamond-plate Switchboard Floor Matting is designed to protect personnel in areas with dangerous high-voltage equipment. Non-conductive matting is used to insulate workers from high voltages up to 30,000 volts of electricity. Diamond-plate traction surface helps reduce risk of slips, trips and falls. Availabe in three widths: 2ft, 3ft, 4ft and one foot cut lengths and matting rolls to 75 feet long.

Conforms to ANSI/ASTM D-178-01 Type II (a premium quality vinyl compound resistant to UV, ozone and many common chemicals). Surface is easily cleaned and will not collect contaminants. Switchboard matting is an essential safety product any industrial space where potentially lethal shocks can be encountered. Made in USA.

Conforms to ANSI/ASTM D-178-01 Type II, Class 2.
Dielectric Strength: 30,000 volts
Recommended Max Usage per ASTM D178-01: up to 17,000 volts
Overall thickness 1/4”
Need a different size? 1’ incremental lengths are available! Simply give us a shout out!

Show less

SKU 701BK

In stock

Width

Length

Quantity - +

Select a Sample

SAMPLE-12" Diamond Plate Switchboard Matting Black

The sample was successfully added to your cart.

Download a Product Details Spec Sheet

Download Spec

Part Numbers

SKU	Short Description	Color	Thickness	Dimensions	Stock Part	UOM
701.14x2x3BK	Diamond-Plate Switchboard Matting	Black	1/4"	2' x 3'	Yes	EA
701.14x2x75BK	Diamond-Plate Switchboard Matting	Black	1/4"	2' x 75'	Yes	RL
701.14x3x10BK	Diamond-Plate Switchboard Matting	Black	1/4"	3' x 10'	Yes	EA
701.14x3x5BK	Diamond-Plate Switchboard Matting	Black	1/4"	3' x 5'	Yes	EA
701.14x3x75BK	Diamond-Plate Switchboard Matting	Black	1/4"	3' x 75'	Yes	RL
701.14x4x75BK	Diamond-Plate Switchboard Matting	Black	1/4"	4' x 75'	Yes	RL

Putting Together Wearwell Part Numbers See an example of how Wearwell puts together their part numbers.

Product Family		Thickness		Width		Length	Color		Product Number
ML414	.	1516	x	2	x	10	BK	=	ML414.1516x2x10BK

Fast Facts

DETAILS & COMPOSITION

Environment	Dry
Wearwell Categories	Non-Conductive
Customization Level	C1 - Custom Length
Solid or Drainage	Solid
Compound	PVC
Recycled	<10%
Warranty	1 Year
WARNING	WARNING: This product can expose you to chemicals including Di(2-ethylhexyl) phthalate, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

TEST RESULTS

Property	Test / Result
Flammability	ASTM D178-01 / Maximum 12.7 mm after 30sec.
Taber Abrasion	Not Available
Temperature Range	Not Available
Coefficient of Friction	Not Available
Compression Deflection	Not Available
Tear Strength	ASTM D412-98a Die C results: 1212 psi
ESD Rating	Not Applicable
Dielectric Strength	Surface conforms to ANSI/ASTM D178 01, Type II, Class 2: 30,000 volts. (Recommended Max Usage up to 17,000 volts)

Chemical Resistance

Key

A = Performs well
B = Slightly affected
C = Moderately affected
D = Highly affected
U = Not recommended
NT = Not tested

Chemical	Urethane	Nitrile	PVC	CFR	SBR	Natural Rubber
Acetone	U	U	U	C	C	C
Animal Fats	NT	A	C	U	U	U
Bleach Solution (10% Dilute)	NT	B	B	C	C	C
Boric Acid	B	A	A	A	A	A
Brake Fluid	U	A	B	D	D	D
Brake Fluid (Silicone Based)	U	A	B	A	B	B
Chlorine Solution (3% Dilute)	C	A	B	C	C	C
Citric Acid	NT	A	C	C	C	U
Cutting Fluid (Mineral Oil Based)	U	B	B	B	C	D
Diesel Oil	U	A	B	U	U	U
Ethylene Acetate	NT	U	NT	U	U	U
Ethylene Glycol	B	A	A	A	A	A
Hydraulic Oil (Petroleum)	U	A	B	D	D	D
Hydrochloric Acid Cole (37% Dilute)	U	C	C	B	B	B
Isopropyl Alcohol	A	B	A	B	B	A
Lacquer Solvents	U	U	U	U	U	U
Lindol (Hydraulic Fluid)	NT	U	NT	U	U	U
MEK	U	U	U	U	U	U
Mineral Oil	C	A	B	A	B	U
Naptha	NT	C	U	U	U	U
Napthlene	U	U	U	U	U	U
Petroleum	U	C	B	D	D	D
Salt Water	A	A	B	B	B	C
Tolulene	U	U	U	U	U	U
Transmission Fluid (Type A)	U	B	A	C	U	U
Trichloroethane	U	U	U	U	U	U
Vegetable Oil	C	A	B	C	C	C

Download Chemical Resistance Guide

LITERATURE

View Maintenance Guide

Faq's

FAQ’s

Q: What is Switchboard matting?

A: Also referred to as non-conductive matting, these products serve as an insulative barrier to protect personnel from dangerous and deadly shock. It's commonly used around high voltage areas, fuse boxes, switchgear, control panels and heavy machinery.

Q: How is the electrical insulation value of the matting rated?

A: In accordance with ASTM D149-97a testing standards, this mat meets the requirement of a minimum of 30,000 volts and recommended max usage of up to 17,000 volts.

Q: How often should switchboard matting be replaced?

A: All switchboard matting should be inspected and/or replaced every year to ensure the safety of personnel.

Q: Are the colors shown on your website the exact color I should expect to receive?

A: No, because monitors vary so there may be a slight variance in the color. If color choice is critical, we suggest that you order a sample. Due to manufacturing processes and material dye lots, color can vary, but our products fall within an industry-standard acceptable variation.
