24/Seven® LockSafe® Interlocking Rubber Floor Tiles - Grease Resistant Diamond Plate

Name: 24/Seven® LockSafe® Interlocking Rubber Floor Tiles - Grease Resistant Diamond Plate
SKU: 579-GRDP
Availability: InStock
Rating: 0.0 (1 reviews)

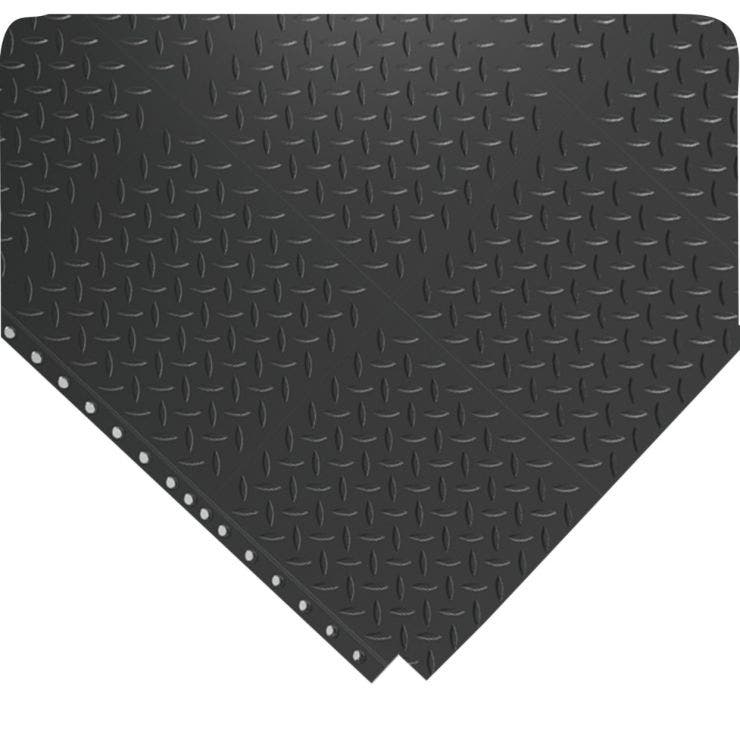

New from Wearwell - #1 Brand in Anti-fatigue, Ergonomic Flooring - 24/Seven Locksafe now available with the ever popular diamond-plate traction surface. Get all the benefits of the 24/Seven LockSafe modular floor tiles plus a diamond-plate surface for even more safety.

Your anti-fatigue matting program should work for you, not against you. Traditional rubber mats have connections that fail, leaving unsightly trip hazards. Wearwell's 24/SEVEN® LockSafe® includes a Positive Interlock System for a dependable safe, ergonomic floor that only comes apart when you want it to.

The male and female connectors on all sides have a flange that lock together and won’t come apart until you want them to! Lift up, roll up and roll away for removal or maintenance. The large 3 foot x 3 foot ( 91cm x 91cm) tiles make for a quick, easy installation for large areas. To fit tighter spaces 24/Seven LockSafe can be cut every 12 inches without losing the ability to connect tiles. The GR compound is suitable for dry areas and those where water is present. Now, with the diamond-plate surface pattern, workers will enjoy even better traction and added safety.

U.S. PATENT NO. D882,293 S
Popular diamond-plate traction pattern for added safety
Hidden positive interlocking system
Cut and reconnect in 12 inch increments (30 cm)
Large 3 ft x 3 ft tiles (91cm x 91cm)
Overall thickness 5/8 inch (16 mm)
Grease Resistant (GR) - for wet, oily or dry debris
Nitrile Rubber (NBR) - resistant to petroleum based fluids, water or dry debris

Learn more about 24/SEVEN LockSafe here.

Show less

SKU 579-GRDP

In stock

Select Tile

325 - +

Select Female Edging Color

326 - +

Select Male Edging Color

327 - +

Select Corners Color

328 - +

Final product price

Quantity - +

Buy Now Wearwell products are available through select distributors across North America, including MATSonline, MSC, Fastenal, Vallen, Motion Industries, WESCO, Uline, Americal Floor Mats, RS Hughes and Tenaquip in Canada. Or you can purchase Wearwell online by clicking the "Buy Now" button.

Select a Sample

SAMPLE-2 - 12" 24/Seven® LockSafe® Diamond-plate GR 5/8in x 12in x 12in

The sample was successfully added to your cart.

Download a Product Details Spec Sheet

Download Spec

How Much Do I Need?

Measurements

Imperial

Metric

Part

Enter the width and length of the installation area.

Width (ft) Width (m)		Length (ft) Length (m)		Square Footage of Flooring Square Meters of Flooring
	×		=	50

Length entered should be the total feet of edging for all ramped sides.

Length entered should be the total meters of edging for all ramped sides.

Length (ft) Length (m)		Linear Footage of Edging Linear Meters of Edging
	=	40

If you would like to receive a copy of this report please submit the below form

First Name

Last Name

Zip Code/Postal Code

Mobile

Thank you for the request. The Estimates are sent to your email. Kindly reach out to us for any queries here.

Find details here.

Need help with the purchase? find details here

Part Numbers

SKU	Short Description	Color	Thickness	Dimensions	Stock Part	UOM
579.58x3x3GRBK	24/Seven LockSafe Solid GR, 5/8" thick 3' x 3', black	Black	5/8"	3' x 3'	Yes	EA

Ramps and accessories

SKU	Short Description	Color	Thickness	Dimensions	Stock Part	UOM
Female edging
578.EDGINGFGRBK	24/Seven® LockSafe® Female Edging GR, 5/8" x 3" x 36", Black	Black	5/8"	3" x 36"	Yes	EA
578.EDGINGFGRYL	24/Seven® LockSafe® Female Edging GR, 5/8" x 3" x 36", Yellow	Yellow	5/8"	3" x 36"	Yes	EA
Male edging
578.EDGINGMGRBK	24/Seven® LockSafe® Male Edging GR, 5/8" x 3" x 36", Black	Black	5/8"	3" x 36"	Yes	EA
578.EDGINGMGRYL	24/Seven® LockSafe® Male Edging GR, 5/8" x 3" x 36", Yellow	Yellow	5/8"	3" x 36"	Yes	EA
Outside corner
578.CORNERGRBK-CS4	24/Seven® LockSafe® Corner Ramp GR, 3" x 3", Black	Black	5/8"	3" x 3"	Yes	EA
578.CORNERGRYL-CS4	24/Seven® LockSafe® Corner Ramp GR, 5/8" x 3" x 3", Yellow	Yellow	5/8"	3" x 3"	Yes	EA

Putting Together Wearwell Part Numbers See an example of how Wearwell puts together their part numbers.

Product Family		Thickness		Width		Length	Color		Product Number
ML414	.	1516	x	2	x	10	BK	=	ML414.1516x2x10BK

Fast Facts

DETAILS & COMPOSITION

Environment	Dry, Wet, Slippery
Wearwell Categories	Anti-Fatigue Flooring
Customization Level	C3 - Full Custom (Length, Width, Shape)
Solid or Drainage	Solid
Compound	Grease Resistant Natural Rubber (GR)
Recycled	>50%
Warranty	1 Year
WARNING

TEST RESULTS

Property	Test / Result
Flammability	MVSS 302 / 'A'; Rating
Taber Abrasion	Federal Standard 191 Modified / 1% loss
Temperature Range	10 to 140 F
Coefficient of Friction	ASTM F1677 / Dry: COF = .90 / Wet COF = 020
Compression Deflection	NA
Tear Strength	NA
ESD Rating	NA
Dielectric Strength	NA

Chemical Resistance

Key

A = Performs well
B = Slightly affected
C = Moderately affected
D = Highly affected
U = Not recommended
NT = Not tested

Chemical	Urethane	Nitrile	PVC	CFR	SBR	Natural Rubber
Acetone	U	U	U	C	C	C
Animal Fats	NT	A	C	U	U	U
Bleach Solution (10% Dilute)	NT	B	B	C	C	C
Boric Acid	B	A	A	A	A	A
Brake Fluid	U	A	B	D	D	D
Brake Fluid (Silicone Based)	U	A	B	A	B	B
Chlorine Solution (3% Dilute)	C	A	B	C	C	C
Citric Acid	NT	A	C	C	C	U
Cutting Fluid (Mineral Oil Based)	U	B	B	B	C	D
Diesel Oil	U	A	B	U	U	U
Ethylene Acetate	NT	U	NT	U	U	U
Ethylene Glycol	B	A	A	A	A	A
Hydraulic Oil (Petroleum)	U	A	B	D	D	D
Hydrochloric Acid Cole (37% Dilute)	U	C	C	B	B	B
Isopropyl Alcohol	A	B	A	B	B	A
Lacquer Solvents	U	U	U	U	U	U
Lindol (Hydraulic Fluid)	NT	U	NT	U	U	U
MEK	U	U	U	U	U	U
Mineral Oil	C	A	B	A	B	U
Naptha	NT	C	U	U	U	U
Napthlene	U	U	U	U	U	U
Petroleum	U	C	B	D	D	D
Salt Water	A	A	B	B	B	C
Tolulene	U	U	U	U	U	U
Transmission Fluid (Type A)	U	B	A	C	U	U
Trichloroethane	U	U	U	U	U	U
Vegetable Oil	C	A	B	C	C	C

Download Chemical Resistance Guide

LITERATURE

Wearwell 2023 Digital Catalog

View Maintenance Guide

Faq's

FAQ’s

Q: What does GR stand for?

A: GR stands for Grease Resistant.

Q: What types of fluids is the GR compound resistant to?

A: The GR compound is best suited for areas with water and dry debris. It is also resistant to boric acid & ethylene glycol.

Q: What does NBR stand for?

A: NBR stands for Nitrile Rubber.

Q: What types of fluids is the NBR compound resistant to?

A: The NBR compound is resistant to silicone-based brake fluid, boric acid, ethylene glycol, animal fats, brake fluid, chlorine solution, diesel oil, petroleum-based hydraulic oil, salt water and vegetable oil.

Q: Is there edging available?

A: Yes, 3" edging is available in both yellow and black for 24/Seven LockSafe. Edging comes in both male and female to correspond with the male or female side of the mat. Edging comes in 3" wide by 36" long strips.

Q: Can 24/Seven LockSafe mats be exposed to liquids?

A: Yes, 24/Seven LockSafe mats can be placed in both wet and dry environments.

Q: How do I clean 24/Seven LockSafe?

A: Use a high-pressure hose (not to exceed 500 psi) and hot water (max 160o F) to rid the mats of oils. For best results use a mild soap or detergent with a pH between 4 and 9, to clean the mats. Do not use steam (unless specifically recommended), degreasers, or caustic chemicals. Do not machine wash or mechanically scrub the mats.

Q: Can you customize a mat to my specific requirements?

A: Yes we can. We offer 3 types of customization:

C1- Custom lengths

C2- Custom lengths and widths

C3- Fully custom (size & shape)

The level of customization by product is on the details tab at the bottom of every product page.

Q: Are the colors shown on your website the exact color I should expect to receive?

A: No, because monitors vary so there may be a slight variance in the color. If color choice is critical, we suggest that you order a sample. Due to manufacturing processes and material dye lots, color can vary, but our products fall within an industry-standard acceptable variation.

Q: Do 24/Seven LockSafe mats pose a tripping hazard?

A: 24/Seven LockSafe mats are available with 3" edging in yellow and black. The ramps allow for a smooth transition on and off the mat and do not pose a tripping hazard.

Q: Do your rubber mats smell?

A: Yes! Unfortunately, that rubbery smell is a feature of any rubber product. The mat should lose that smell over time. If you are planning to install rubber mats or flooring in any enclosed space, please remember that this can slow the dissipation of a strong rubber scent.
