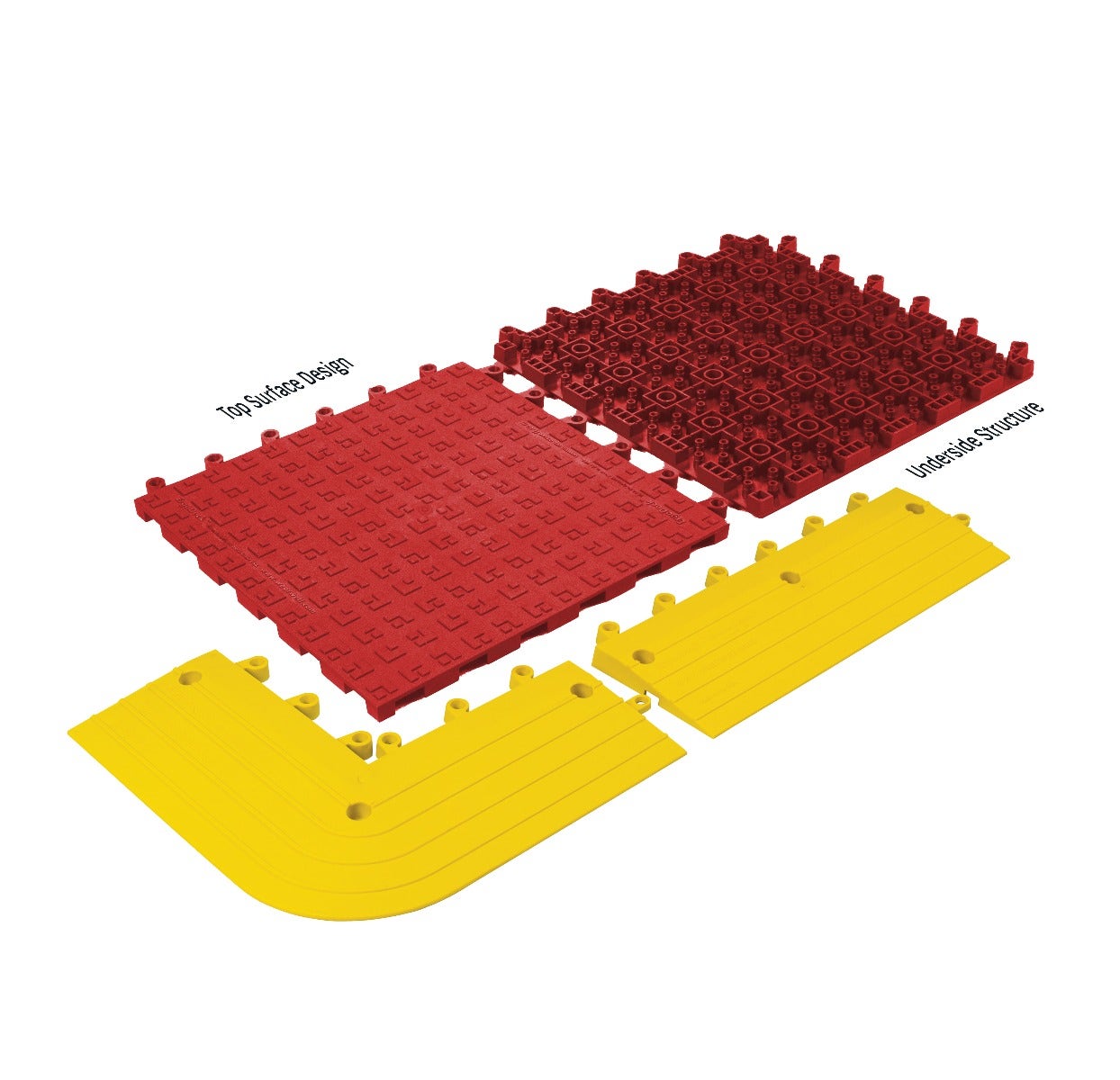

Red ErgoDeck® General Purpose Solid

A comfortable, ergonomic floor that will withstand heavy use. The patented LockSafe Positive Interlocking System delivers secure connections. Perfect for lean manufacturing, tiles can be unlocked and repositioned as work centers change to fit customer needs. The optional 6" side safety ramps and corners have countersunk holes for semi-permanent installation. ErgoDeck General Purpose addresses worker health and comfort in areas with primarily foot traffic and light cart traffic.

U.S. PATENT NO. D502 Show less

SKU 566-RD

In stock

Quantity - +

Select a Sample

SAMPLE-ErgoDeck General Purpose Solid Red18in x 18in

The sample was successfully added to your cart.

Download a Product Details Spec Sheet

Download Spec

Part Numbers

Ramps and accessories

SKU	Short Description	Color	Thickness	Dimensions	Stock Part	UOM
Ramp
560.78x6x18BK-CS10	ErgoDeck heavy duty ramps provide a professional finish and a smooth on-off transition for your ErgoDeck flooring. These ramps work to prevent trips while outlining a perimeter of a workspace.	Black	7/8"	6" x 18"	Yes	CS-10
560.78x6x36AL	Tough environments demand even tougher edging. ErgoDeck® Aluminum Ramps - are high-strength, lightweight, and chemical resistant ramps that create a gradual transition for any ErgoDeck® flooring system - not to mention a sleek design look.	Aluminum		6" x 36"	Yes	EA
560.78x6x18YL-CS10	ErgoDeck ramps	Yellow	7/8"	6" x 18"	Yes	CS-10
561.78x6x18BK-CS10	ErgoDeck Heavy Duty with Grit Shield Ramp Black Case	Black	7/8"	6" x 18"	No	CS-10
Outside corner
560.78x6x15x15BK-CS4	ErgoDeck Outside Corner	Black	7/8"	6" x 15" x 15"	Yes	CS-4
560.78x6x15x15YL-CS4	ErgoDeck Outside Corner	Yellow	7/8"	6" x 15" x 15"	Yes	CS-4
561.78x6x15x15BK-CS4	ErgoDeck Heavy Duty with Grit Shield Outside Corner Black	Black	7/8"	6" x 15" x 15"	No	CS-4
560.78x6x15x15AL	Tough environments demand even tougher edging. ErgoDeck® Aluminum Ramps - are high-strength, lightweight, and chemical resistant ramps that create a gradual transition for any ErgoDeck® flooring system - not to mention a sleek design look.	Aluminum	7/8"	6" x 15" x 15"	Yes	EA
Inside corner
560.78x6x9x9BK	The ErgoDeck inside corner allows for any possible configuration of ErgoDeck. Wearwell’s inside corner fits snug, preventing trips and calling out the perimeter of the workspace.	Black	7/8"	6" x 9" x 9"	Yes	EA
560.78x6x9x9YL	ErgoDeck Inside Corner	Yellow	7/8"	6" x 9" x 9"	Yes	EA
561.78x6x9x9BK	ErgoDeck Heavy Dutywith Grit Shield Inside Corner Black	Black	7/8"	6" x 9" x 9"	No	EA
560.78x6x9x9AL	Tough environments demand even tougher edging. ErgoDeck® Aluminum Ramps - are high-strength, lightweight, and chemical resistant ramps that create a gradual transition for any ErgoDeck® flooring system - not to mention a sleek design look.	Aluminum	7/8"	6" x 9" x 9"	Yes	EA

Putting Together Wearwell Part Numbers See an example of how Wearwell puts together their part numbers.

Product Family		Thickness		Width		Length	Color		Product Number
ML414	.	1516	x	2	x	10	BK	=	ML414.1516x2x10BK

Fast Facts

DETAILS & COMPOSITION

Environment

Dry, Wet, Oily

Wearwell Categories

Anti-Fatigue Flooring

Customization Level

C3 - Full Custom (Length

Solid or Drainage

Solid

Compound

PVC

Recycled

>80%

Warranty

Lifetime

WARNING

Warning Symbol

TEST RESULTS

Property	Test / Result
Flammability	MVSS 302 / 'A'; Rating
Taber Abrasion	ASTM D 3884 / 1% loss
Temperature Range	0 to 120 F
Coefficient of Friction	ASTM F1677 / Dry: COF = .65 / Wet: COF = .42
Compression Deflection	ASTM D575-91 /14.15%
Tear Strength	Not Available
ESD Rating	Not Available
Dielectric Strength	Not Available

Chemical Resistance

Key

A = Performs well
B = Slightly affected
C = Moderately affected
D = Highly affected
U = Not recommended
NT = Not tested

Chemical	Urethane	Nitrile	PVC	CFR	SBR	Natural Rubber
Acetone	U	U	U	C	C	C
Animal Fats	NT	A	C	U	U	U
Bleach Solution (10% Dilute)	NT	B	B	C	C	C
Boric Acid	B	A	A	A	A	A
Brake Fluid	U	A	B	D	D	D
Brake Fluid (Silicone Based)	U	A	B	A	B	B
Chlorine Solution (3% Dilute)	C	A	B	C	C	C
Citric Acid	NT	A	C	C	C	U
Cutting Fluid (Mineral Oil Based)	U	B	B	B	C	D
Diesel Oil	U	A	B	U	U	U
Ethylene Acetate	NT	U	NT	U	U	U
Ethylene Glycol	B	A	A	A	A	A
Hydraulic Oil (Petroleum)	U	A	B	D	D	D
Hydrochloric Acid Cole (37% Dilute)	U	C	C	B	B	B
Isopropyl Alcohol	A	B	A	B	B	A
Lacquer Solvents	U	U	U	U	U	U
Lindol (Hydraulic Fluid)	NT	U	NT	U	U	U
MEK	U	U	U	U	U	U
Mineral Oil	C	A	B	A	B	U
Naptha	NT	C	U	U	U	U
Napthlene	U	U	U	U	U	U
Petroleum	U	C	B	D	D	D
Salt Water	A	A	B	B	B	C
Tolulene	U	U	U	U	U	U
Transmission Fluid (Type A)	U	B	A	C	U	U
Trichloroethane	U	U	U	U	U	U
Vegetable Oil	C	A	B	C	C	C

Download Chemical Resistance Guide

LITERATURE

View Maintenance Guide

Faq's

FAQ’s

Q: What are the benefits of using anti-fatigue flooring?

A: Anti-fatigue flooring is designed to offer a wide range of benefits to employees and employers. Anti-Fatigue flooring can increase worker productivity
