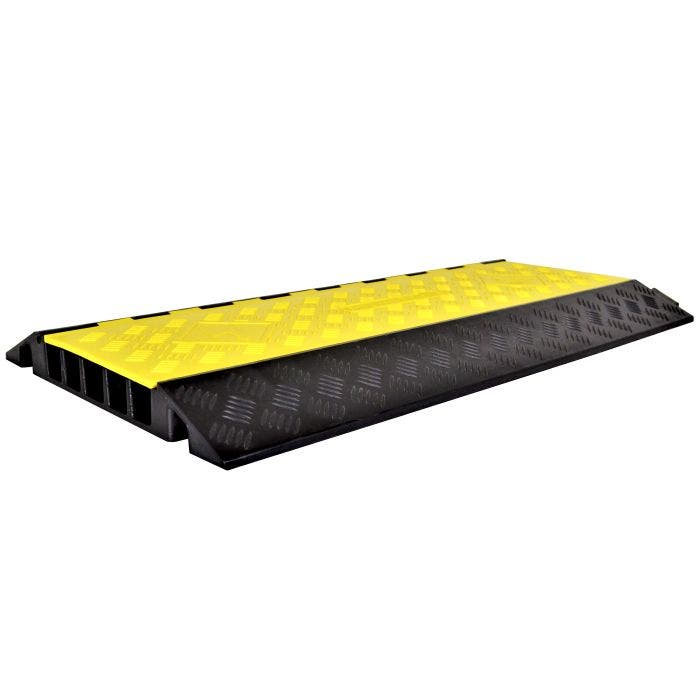

POWERHOUSE Heavy Duty 5 Channel Straight Cable Protector

Group PWR-5CHANHD
Be the first to review this product
Need It Now? Buy Online

Wearwell products are available through many amazing distributors across North America, including MSC, Fastenal, Vallen, Motion Industries, WESCO and RS Hughes. Wearwell products are also available online at Amazon and other retailers. Or, you can purchase Wearwell online by clicking the “Buy Now” button.

The 5 Channel Heavy Duty POWERHOUSE is the ultimate built-to-shield cable & hose protector. With capacity loads of 20,000 lbs per tire, you can count on this industrial pro to keep you running in the most demanding environments. With optional left and right turning capabilities, the Heavy Duty POWERHOUSE will protect your most challenging layouts!

  • Supports a maximum of 20,000 lbs per tire
  • 19.75 inch x 36 inch (50 cm x 91 cm)
  • Holds up to 1.5 inch (3.8 cm) maximum cable diameter
  • 2.25 inch (5.7 cm) height
  • Black with Yellow Lid
  • Covered by a 3 year indoor/1 year outdoor warranty

+ Read More
Download Sheet
OTHER PRODUCTS TO CONSIDER
Parameters of Category: Specifications - General
Suitable EnvironmentDry, Wet
TypeCable-Protector
Customization LevelC-1
Solid or DrainageSolid
CompoundTPU
RecycledNA
Warranty1 year outdoors/ 3 years indoors
Putting Together Wearwell Part Numbers
See an example of how Wearwell puts together their part numbers.
SKU Short Description Color Thickness Dimensions Stock Part UOM
PWR.5CHAN.HD.BYL POWERHOUSE Heavy Duty 5 Channel Straight Cable Protector Black w/Yellow Lid 2.25" 19.75" x 36" Yes EA

Ramps and accessories

SKU Short Description Color Thickness Dimensions Stock Part UOM
Other
PWR.5CH.HD.RC.BYL-EA POWERHOUSE Heavy Duty 5 Channel Right Turn Cable Protector Black w/Yellow Lid 2.25" 19.75" x 12" Yes EA
PWR.5CH.HD.LC.BYL-EA POWERHOUSE Heavy Duty 5 Channel Left Turn Cable Protector Black w/Yellow Lid 2.25" 19.75" x 12" Yes EA
Test Specification & Results
PropertyTest / Result
Flammability FMVSS 302 SE Rating
Taber Abrasion < .5% weight loss after 1,000 cycles
Temperature Range 40 to 150 degrees Fahrenheit
Coefficient of Friction Not Applicable
Compression Deflection NA
Tear Strength Lid: 1730 psi Base: 1000 psi
ESD Rating NA
Dielectric Strength NA

Key

  • A = Performs well
  • B = Slightly affected
  • C = Moderately affected
  • D = Highly affected
  • U = Not recommended
  • NT = Not tested
Chemical Urethane Nitrile PVC CFR SBR Natural Rubber
Acetone U U U C C C
Animal Fats NT A C U U U
Bleach Solution (10% Dilute) NT B B C C C
Boric Acid B A A A A A
Brake Fluid U A B D D D
Brake Fluid (Silicone Based) U A B A B B
Chlorine Solution (3% Dilute) C A B C C C
Citric Acid NT A C C C U
Cutting Fluid (Mineral Oil Based) U B B B C D
Diesel Oil U A B U U U
Ethylene Acetate NT U NT U U U
Ethylene Glycol B A A A A A
Hydraulic Oil (Petroleum) U A B D D D
Hydrochloric Acid Cole (37% Dilute) U C C B B B
Isopropyl Alcohol A B A B B A
Lacquer Solvents U U U U U U
Lindol (Hydraulic Fluid) NT U NT U U U
MEK U U U U U U
Mineral Oil C A B A B U
Naptha NT C U U U U
Napthlene U U U U U U
Petroleum U C B D D D
Salt Water A A B B B C
Tolulene U U U U U U
Transmission Fluid (Type A) U B A C U U
Trichloroethane U U U U U U
Vegetable Oil C A B C C C
Download Chemical Resistance Guide
POWERHOUSE Installation POWERHOUSE Cable Protectors POWERHOUSE Brochure View Maintenance Guide
