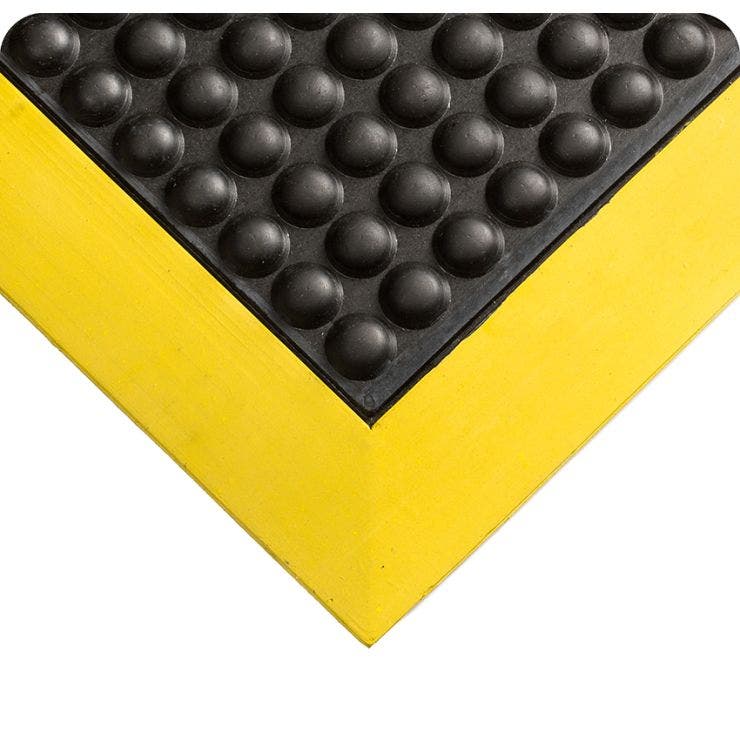

Ortho Stand™

SKU 454

Ideal for commercial and light industrial applications, the hollow-domed surface slightly compresses underfoot to fight fatigue. Read more

Economical
Enhanced anti-fatigue properties
Available with black or yellow borders
Overall thickness 1/2”

Show less

Product Specifications

Construction
Info
Applications
Testing

Construction

Available Colors
Standard Sizes	Available in several standard sizes for ease of installation in common sized work stations.
Ramp	Ramps are molded into the edge of the mat so it is impossible for them to separate which reduces the possibility of trip hazards.
Cut Lengths	Cut lengths are not available for this product.
Customization	Customization is not available for this product.
Rubber Compound	SBR-Natural Rubber Blend

Info

Warranty:	1 Year
Country of Origin:	Proudly manufactured in North America in Guadalajara, Mexico.
Prop 65 Warning:	No listed chemicals included

Applications

Suitable Environment	Dry floors or where water, weak acids or alcohols are commonly present. Avoid prolonged exposure to oils, strong acids and organic solvents.
Applications	Manufacturing assembly lines airports workshops garages warehouse pick and pack commercial and retail check-out counters.

Testing

Flammability:	MVSS 302 / 'A'; Rating
Compression Deflection:	ASTM D575 - 7.3psi @ 25% =.13" distance compressed
Dielectric:	Not Rated for Switchboard Applications
ESD:	Not Rated for ESD Applications

Color

Size

Quantity - +

Need Help?

Buy From a Distributor

Wearwell products are available through select distributors across North America, including MATSonline, MSC, Fastenal, Vallen, Motion Industries, WESCO, NEXT Industries, Uline, American Floor Mats, RS Hughes and Tenaquip in Canada. Or you can purchase Wearwell online by clicking the "Buy Now" button.

Select a Sample

SAMPLE-12" Ortho Stand Black

The sample was successfully added to your cart.

Download a Product Details Spec Sheet

Download Spec

Part Numbers

SKU	Short Description	Color	Width	Length	Thickness	Stock Part	UOM
454.12x2x3BK	Ortho Stand	Black	2 Ft. (.61 m)	3 Ft. (.91 m)	1/2 In. (13 mm)	Yes	EA
454.12x2x3BYL	Ortho Stand	Black/Yellow	2 Ft. (.61 m)	3 Ft. (.91 m)	1/2 In. (13 mm)	Yes	EA
454.12x3x4BK	Ortho Stand	Black	3 Ft. (.91 m)	4 Ft. (1.22 m)	1/2 In. (13 mm)	Yes	EA
454.12x3x4BYL	Ortho Stand	Black/Yellow	2 Ft. (.61 m)	4 Ft. (1.22 m)	1/2 In. (13 mm)	Yes	EA

Putting Together Wearwell Part Numbers See an example of how Wearwell puts together their part numbers.

Product Family		Thickness		Width		Length	Color		Product Number
415	.	916	x	3	x	10	BK	=	415.916x3x10BK

Chemical Resistance

Key

A = Performs well
B = Slightly affected
C = Moderately affected
D = Highly affected
U = Not recommended
NT = Not tested

Chemical	Urethane	Nitrile	PVC	CFR	SBR	Natural Rubber	Aluminum Resistance	Polypropylene Resistance
Acetone	U	U	U	C	C	C	A	D
Animal Fats	NT	A	C	U	U	U	A	A
Bleach Solution (10% Dilute)	NT	B	B	C	C	C	D	B
Boric Acid	B	A	A	A	A	A	D	A
Brake Fluid	U	A	B	D	D	D	A	A
Brake Fluid (Silicone Based)	U	A	B	A	B	B	A	A
Chlorine Solution (3% Dilute)	C	A	B	C	C	C	D	U
Citric Acid	NT	A	C	C	C	U	B	A
Cutting Fluid (Mineral Oil Based)	U	B	B	B	C	D	A	B
Diesel Oil	U	A	B	U	U	U	A	B
Ethylene Acetate	NT	U	NT	U	U	U	A	A
Ethylene Glycol	B	A	A	A	A	A	A	A
Gasoline	U	B	B	D	D	U	A	U
Hydraulic Oil (Petroleum)	U	A	B	D	D	D	A	D
Hydrochloric Acid (37% Dilute)	U	C	C	B	B	B	U	A
Isopropyl Alcohol	A	B	A	B	B	A	A	A
Lacquer Solvents	U	U	U	U	U	U	A	D
Lindol (Hydraulic Fluid)	NT	U	NT	U	U	U	A	D
MEK (Methyl Ethyl Ketone)	U	U	U	U	U	U	B	B
Motor Oil	D	A	A	D	D	U	A	A
Mineral Oil	C	A	B	A	B	U	A	B
Naptha	NT	C	U	U	U	U	A	B
Napthlene	U	U	U	U	U	U	B	B
Petroleum	U	C	B	D	D	D	D	B
Salt Water	A	A	B	B	B	C	B	A
Strong Alkalies/Bases	D	C	B	C	C	U	U	A
Sulfuric Acid	D	B	A	D	D	C	U	A
Tolulene	U	U	U	U	U	U	A	C
Transmission Fluid (Type A)	U	B	A	C	U	U	A	A
Trichloroethane	U	U	U	U	U	U	D	C
Vegetable Oil	C	A	B	C	C	C	B	A
Water	B	A	A	A	A	A	A	A

Download Chemical Resistance Guide

LITERATURE

Limited Warranty

Wearwell Digital Catalog

View Maintenance Guide

Faq's

FAQ’s

Q: What does GR stand for?

A: GR stands for Grease Resistant.

Q: What types of fluids is the GR compound suited for?

A: The GR compound is best suited for areas with water and dry debris. It is also resistant to boric acid & ethylene glycol.

Q: Is there edging available?

A: The edging is built in! Ortho Stand matting comes with a molded-in safety bevel on all 4 sides and is available in black or yellow.

Q: Can Ortho Stand mats be exposed to liquids?

A: Yes, Ortho Stand mats can be placed in both wet and dry environments.

Q: How do I clean my Ortho Stand mat?

A: Use a high-pressure hose (not to exceed 500 psi) and hot water (max 160o F) to rid the mats of oils. For best results use a mild soap or detergent with a pH between 4 and 9, to clean the mats. Do not use steam (unless specifically recommended), degreasers, or caustic chemicals. Do not machine wash or mechanically scrub the mats.

Q: There 2 sides to my mat. Which side do I stand on?

A: The top side of the mat is the side with the dome pattern.

Q: Are the colors shown on your website the exact color I should expect to receive?

A: No, because monitors vary so there may be a slight variance in the color. If color choice is critical, we suggest that you order a sample. Due to manufacturing processes and material dye lots, color can vary, but our products fall within an industry-standard acceptable variation.

Q: Do Ortho Stand mats pose a tripping hazard?

A: Ortho Stand mats have a molded in safety bevel (sloped edge) on all four sides. This allows for a smooth transition on and off the mat and do not pose a tripping hazard.

Q: Do your rubber mats smell?

A: Yes! Unfortunately, that rubbery smell is a feature of any rubber product. The mat should lose that smell over time. If you are planning to install rubber mats or flooring in any enclosed space, please remember that this can slow the dissipation of a strong rubber scent.
