LockSafe® Heavy Duty Open Grid - Black

SKU 587
  • LockSafe® Heavy Duty Open Grid - Black
  • LockSafe® Heavy Duty Open Grid - Black
  • LockSafe® Heavy Duty Open Grid - Black
  • LockSafe® Heavy Duty Open Grid - Black

Introducing the 587 LockSafe Heavy Duty mat, the ultimate solution for demanding manufacturing environments. This 3/4 In. (19 mm) thick, 3x3 Ft. (.91x.91 m) interlocking modular tile is built to withstand the harshest and most relentless work conditions. Available in both SBR and Nitrile NBR Rubber, these tiles provide excellent chemical resistance options including a wide range of industrial chemicals, oils, and solvents.

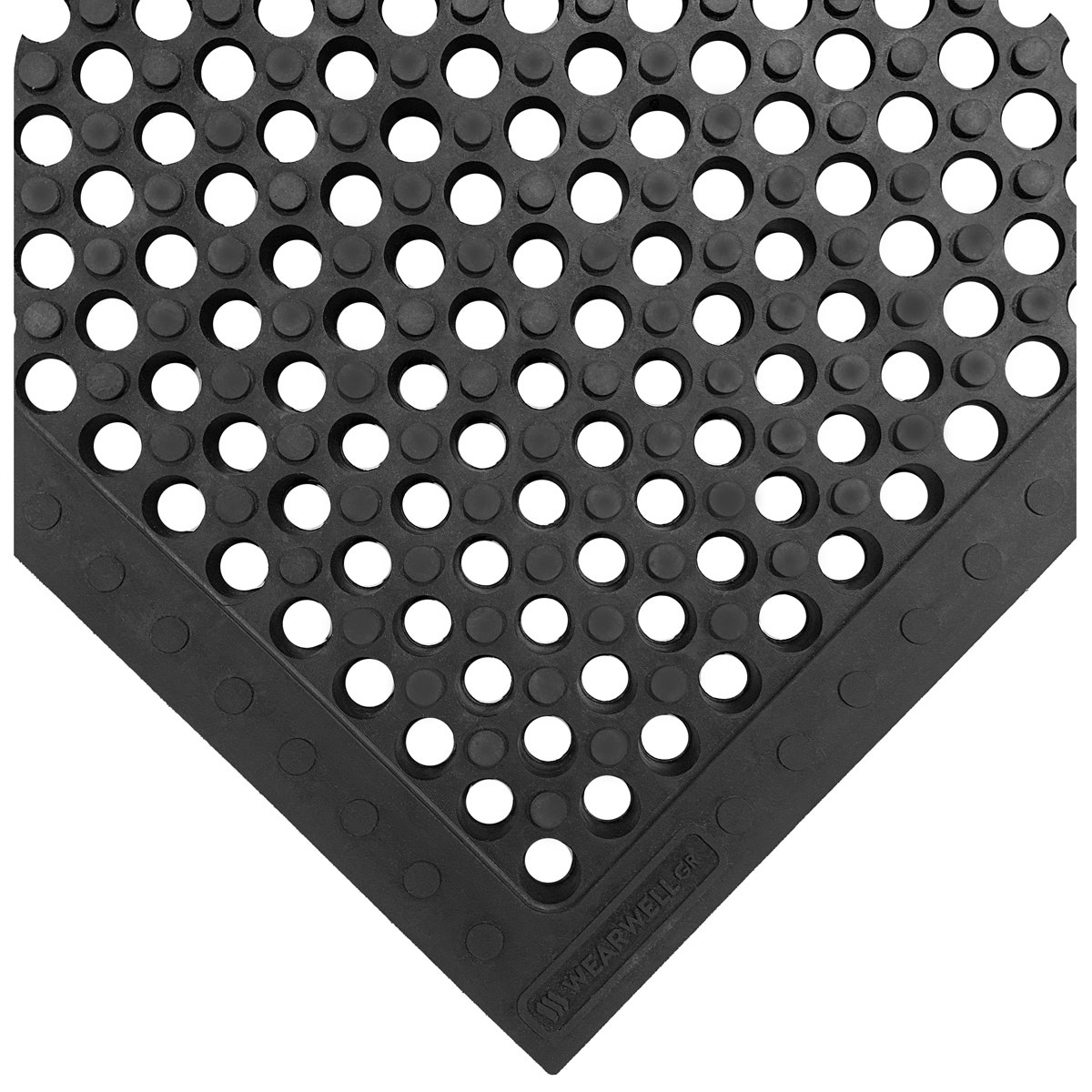

These tiles are designed to provide exceptional resilience and comfort. The 3/4 In. (19 mm) thick body of the tiles ensures long-lasting performance under the most demanding conditions. The surface of the tiles features a unique raised cylinder design intermixed with a uniform series of drainage holes which combine to provide excellent slip resistance and industry-leading airflow and drainage. The LockSafe Heavy Duty mat is so robust it can even be placed directly over open grating. The patented LockSafe positive interlock system is easy to customize on-site in 3 Ft. (.91 m) increments for a perfect fit for your space. Choose the LockSafe Heavy Duty mat for unmatched durability, safety, and performance in your most challenging environments.

Read more

Product Specifications

Construction

Available Colors
Thickness 3/4 In. (19 mm)
Standard Sizes Available in interlocking modular tiles. Allows for full do-it-yourself customization on-site.
Ramp Ramps are sold separately and attached on-site during installation.
Cut Lengths Cut lengths are not available for this product.
Customization Full customization available: Any size! Any shape! For price and lead time, simply submit a drawing with dimensions to quotes@wearwell.com or contact Wearwell for assistance.
Connector Exlcusive LockSafe Connector System
Rubber Compound SBR Rubber, Nitrile Rubber

Info

Warranty: Limited Lifetime
Country of Origin: Proudly manufactured in North America in Guadalajara, Mexico.
Prop 65 Warning: No listed chemicals included

Applications

Suitable Environment Dry floors or where oils, hydraulic fluid, most hydrocarbons are commonly present.
Applications
  • Manufacturing
  • assembly lines
  • garages
  • metal fabrication
  • machine shops
  • food production
  • restaurants
  • automobile fluid fill.

Testing

Flammability: MVSS 302 / 'A'; Rating
Compression Deflection: ASTM D575 - 16.4psi @ 25% =.24" distance compressed
Dielectric: Not Rated for Switchboard Applications
ESD: Not Rated for ESD Applications
Taber Abrasion: ASTM D 3884 / 1% loss
