Putting Together Wearwell Part Numbers
See an example of how Wearwell puts together their part numbers.
| SKU | Short Description | Color | Thickness | Dimensions | Stock Part | UOM |
|---|---|---|---|---|---|---|

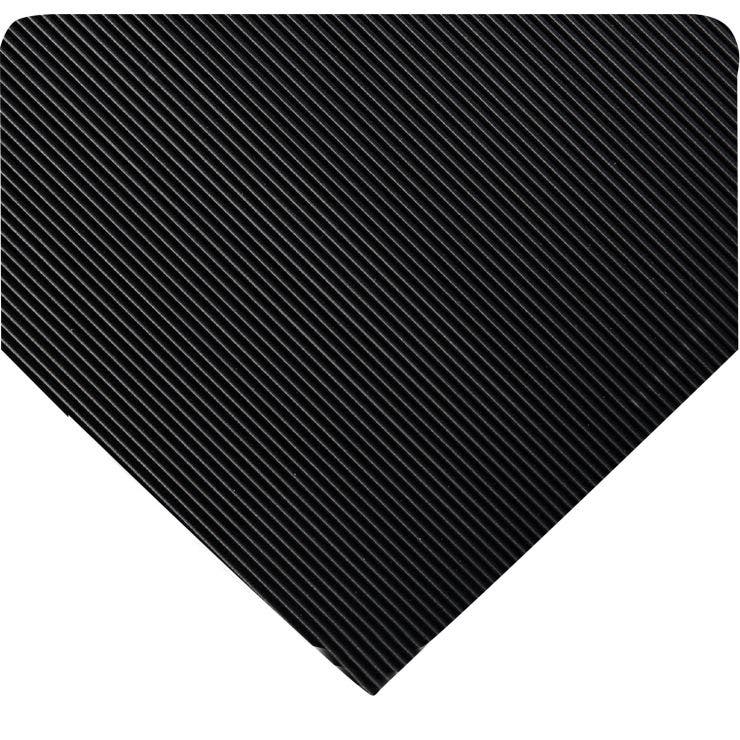

| 305.14x2x75BK | Heavy Duty Corrugated | Black | 1/4" | 2' x 75' | Yes | RL |
| 305.14x3x75BK | Heavy Duty Corrugated | Black | 1/4" | 3' x 75' | Yes | RL |
| 305.14x4x75BK | Heavy Duty Corrugated | Black | 1/4" | 4' x 75' | Yes | RL |
Parameters of Category: Specifications - General
| Suitable Environment | Dry |
| Type | Runner |
| Customization Level | C1 - Custom Length |
| Solid or Drainage | Solid |
| Compound | PVC |
| Recycled | >50% |
| Warranty | 1 Year |
Test Specification & Results
| Property | Test / Result |
|---|---|
| Flammability | MVSS 302 / 'A'; Rating |
| Taber Abrasion | Federal Standard 191 / 1% lost @ 1,000 cycles |
| Temperature Range | -10 to 120 F |
| Coefficient of Friction | ASTM F1677 / Dry: COF = .91 / Wet: COF = .65 |
| Compression Deflection | Not Available |
| Tear Strength | Not Available |
| ESD Rating | Not Available |
| Dielectric Strength | Not Available |
Key
- A = Performs well
- B = Slightly affected
- C = Moderately affected
- D = Highly affected
- U = Not recommended
- NT = Not tested
| Chemical | Urethane | Nitrile | PVC | CFR | SBR | Natural Rubber |
|---|---|---|---|---|---|---|
| Acetone | U | U | U | C | C | C |
| Animal Fats | NT | A | C | U | U | U |
| Bleach Solution (10% Dilute) | NT | B | B | C | C | C |
| Boric Acid | B | A | A | A | A | A |
| Brake Fluid | U | A | B | D | D | D |
| Brake Fluid (Silicone Based) | U | A | B | A | B | B |
| Chlorine Solution (3% Dilute) | C | A | B | C | C | C |
| Citric Acid | NT | A | C | C | C | U |
| Cutting Fluid (Mineral Oil Based) | U | B | B | B | C | D |
| Diesel Oil | U | A | B | U | U | U |
| Ethylene Acetate | NT | U | NT | U | U | U |
| Ethylene Glycol | B | A | A | A | A | A |
| Hydraulic Oil (Petroleum) | U | A | B | D | D | D |
| Hydrochloric Acid Cole (37% Dilute) | U | C | C | B | B | B |
| Isopropyl Alcohol | A | B | A | B | B | A |
| Lacquer Solvents | U | U | U | U | U | U |
| Lindol (Hydraulic Fluid) | NT | U | NT | U | U | U |
| MEK | U | U | U | U | U | U |
| Mineral Oil | C | A | B | A | B | U |
| Naptha | NT | C | U | U | U | U |
| Napthlene | U | U | U | U | U | U |
| Petroleum | U | C | B | D | D | D |
| Salt Water | A | A | B | B | B | C |
| Tolulene | U | U | U | U | U | U |
| Transmission Fluid (Type A) | U | B | A | C | U | U |
| Trichloroethane | U | U | U | U | U | U |
| Vegetable Oil | C | A | B | C | C | C |
