FOUNDATION Toe Plate

For use with the FOUNDATION modular platform system, these rigid HDPE toe plates keep objects from falling from the edge of the platform surface. Choose 71" (1.8 m) side plates or 38" (.97 m) end plates.

71" (1.8 m) side plates slide into beams (no hardware needed)

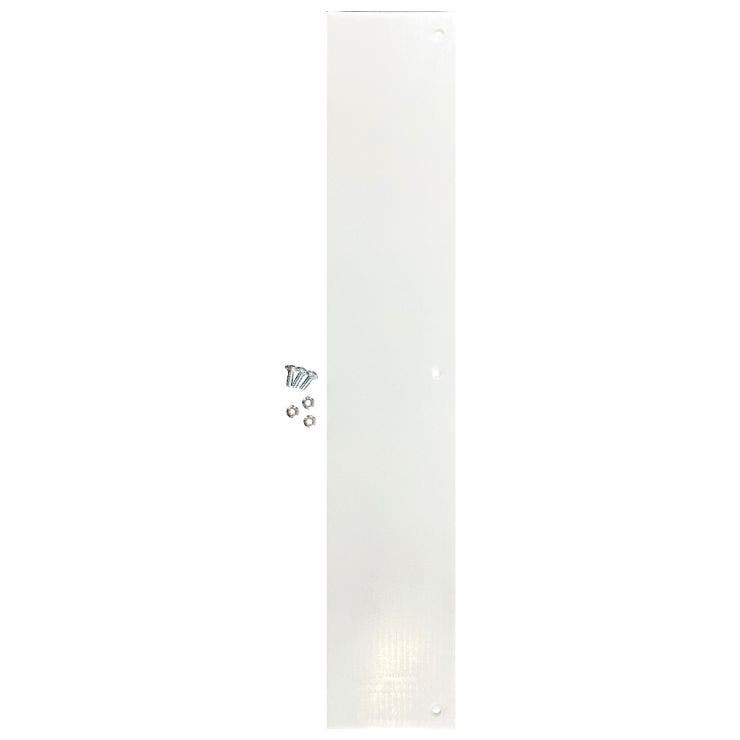

38" (97 m) end plates are easy to install with included hardware
High-density polyethylene
Easy installation
Made in the USA

Show less

SKU F1.TPlate

Material HDPE

Length (inches)

Quantity - +

Wearwell products are available through select distributors across North America, including MATSonline, MSC, Fastenal, Vallen, Motion Industries, WESCO, NEXT Industries, Uline, American Floor Mats, RS Hughes and Tenaquip in Canada. Or you can purchase Wearwell online by clicking the "Buy Now" button.

Download a Product Details Spec Sheet

Download Spec

Part Numbers

SKU	Short Description	Color	Width	Length	Height	Thickness	Stock Part	UOM
F1.TPlate.B.WH	FOUNDATION 72" Beam Toe Plate	White	6 In. (15 cm)	71 In. (180 cm)			Yes	Each
F1.TPlate.E.WH	FOUNDATION 38" End Toe plate	White	9 In. (23 cm)	38 In. (97 cm)			Yes	Each

Putting Together Wearwell Part Numbers See an example of how Wearwell puts together their part numbers.

Product Family		Thickness		Width		Length	Color		Product Number
415	.	916	x	3	x	10	BK	=	415.916x3x10BK

Fast Facts

DETAILS & COMPOSITION

Suitable Environment	Wet Area
Categories & Applications	Platform
Customization Options	C1
Solid or Drainage	Solid
Material	HDPE
Recycled	0%
Warranty	1 year
WARNING

TEST RESULTS

Property	Test / Result
Flammability	Not Applicable
Taber Abrasion	Not Applicable
Temperature Range	Not Applicable
Coefficient of Friction	Not Applicable
Compression Deflection	Not Applicable
Tear Strength	Not Applicable
ESD Rating	Not Applicable
Dielectric Strength	Not Applicable

Chemical Resistance

Key

A = Performs well
B = Slightly affected
C = Moderately affected
D = Highly affected
U = Not recommended
NT = Not tested

Chemical	Urethane	Nitrile	PVC	CFR	SBR	Natural Rubber
Acetone	U	U	U	C	C	C
Animal Fats	NT	A	C	U	U	U
Bleach Solution (10% Dilute)	NT	B	B	C	C	C
Boric Acid	B	A	A	A	A	A
Brake Fluid	U	A	B	D	D	D
Brake Fluid (Silicone Based)	U	A	B	A	B	B
Chlorine Solution (3% Dilute)	C	A	B	C	C	C
Citric Acid	NT	A	C	C	C	U
Cutting Fluid (Mineral Oil Based)	U	B	B	B	C	D
Diesel Oil	U	A	B	U	U	U
Ethylene Acetate	NT	U	NT	U	U	U
Ethylene Glycol	B	A	A	A	A	A
Hydraulic Oil (Petroleum)	U	A	B	D	D	D
Hydrochloric Acid Cole (37% Dilute)	U	C	C	B	B	B
Isopropyl Alcohol	A	B	A	B	B	A
Lacquer Solvents	U	U	U	U	U	U
Lindol (Hydraulic Fluid)	NT	U	NT	U	U	U
MEK	U	U	U	U	U	U
Mineral Oil	C	A	B	A	B	U
Naptha	NT	C	U	U	U	U
Napthlene	U	U	U	U	U	U
Petroleum	U	C	B	D	D	D
Salt Water	A	A	B	B	B	C
Tolulene	U	U	U	U	U	U
Transmission Fluid (Type A)	U	B	A	C	U	U
Trichloroethane	U	U	U	U	U	U
Vegetable Oil	C	A	B	C	C	C

Download Chemical Resistance Guide

LITERATURE

View Maintenance Guide

Faq's

FAQ’s

Q: What accessories are available for FOUNDATION?

A: FOUNDATION is available with rubber feet to prevent sliding and scratching the floor on smaller platforms, anchors to allow for semi-permanent installations, and toe plates to prevent tools from dropping or rolling off. Another accessory is a yellow spray-paint that works specifically with FOUNDATION surface tiles and toe plates. It can be used to paint toeplates, or call out the perimeter of a surface tile. There are also three different surface tiles to choose from, each with a different purpose.

Q: What do toe plates do?

A: Toe plates can call out the perimeter of the platform, as well as stop tools and parts from rolling off the edge of the platform.

Q: Can we get yellow borders?

A: Yellow borders can be painted on toe plates by purchasing the optional yellow spray-paint. Painting is done by the user so they can get it the way they want.

Q: Do they come with toe boards or kick plates?

A: Toe plates are available as an accessory, but FOUNDATION does not come with toe plates out of the box.

Q: What material is the toe plate?

A: HDPE
