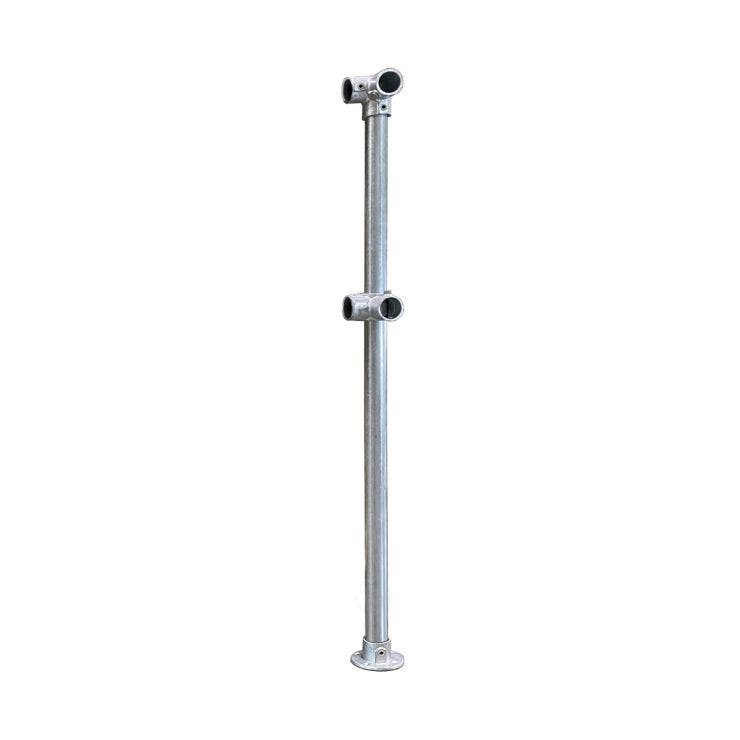

Corner Post Railing Kit

Wearwell’s Railing Post kits include all the components needed to assemble. They connect to other Posts kits using Single Rails with minimal effort. Should you need a shorter length, rails can easily be cut on-site. This 90-degree corner post is made to attach to a set of rails on both sides.

Wearwell’s Rail System is a tough, modular system with no welding or threading required. Save time, labor, material, and handling charges associated with traditional railing. Railing kits take the guesswork out of material needs for your unique layout.

Building straight runs and turns has never been easier. Use on solid concrete surfaces around the perimeter of our FOUNDATION platform system for added safety. Railing is available in 4 stock heights as well as custom heights. Work with an expert to plan larger layouts.

  • 6 ft long (1.83m)
  • 42”, 46”, 50”, 54” and custom heights available
  • Concrete Anchor Screws and all components included
  • Fast, simple assembly with no welding required
  • 90 degree turns available
  • Railing can be used for any application where railing is needed
  • Top of railings should be 42 inches above the walking surface
  • Posts and rails are 1.5" (3.81cm) in diameter
  • Made of Galvanized Steel
  • Choose from Silver or Yellow Rails

+ Read More
Have a question? We're here to help!
Putting Together Wearwell Part Numbers
SKU Short Description Color Diameter Dimensions
RK.CP.15x42.SV Wearwell Railing System - Corner Post Kit 1.5in tube, 42in high, Galvanized Silver 1.5” 42”
RK.CP.15x42.SYL Wearwell Railing System - Corner Post Kit 1.5in tube, 42in high, Galvanized Yellow Silver/Yellow 1.5” 42”
RK.CP.15x46.SV Wearwell Railing System - Corner Post Kit 1.5in tube, 46in high, Galvanized Silver 1.5” 46”
RK.CP.15x46.SYL Wearwell Railing System - Corner Post Kit 1.5in tube, 46in high, Galvanized Yellow Silver/Yellow 1.5” 46”
RK.CP.15x50.SV Wearwell Railing System - Corner Post Kit 1.5in tube, 50in high, Galvanized Silver 1.5” 50”
RK.CP.15x50.SYL Wearwell Railing System - Corner Post Kit 1.5in tube, 50in high, Galvanized Yellow Silver/Yellow 1.5” 50”
RK.CP.15x54.SV Wearwell Railing System - Corner Post Kit 1.5in tube, 54in high, Galvanized Silver 1.5” 54”
RK.CP.15x54.SYL Wearwell Railing System - Corner Post Kit 1.5in tube, 54in high, Galvanized Yellow Silver/Yellow 1.5” 54”
Parameters of Category: Specifications - General
Suitable EnvironmentWet/ Dry
TypeRailing
Customization LevelC2
Solid or DrainageSolid
CompoundGalvanized Steel
RecycledN/A
Warranty1 year
What OSHA or other regulations are required for railing or working at height?
  • ANSI: ANSI A14.7-2011, 4.4.4 All ladder stand platforms with platform height of 4 feet to 10 feet shall be provided with handrails. The use of removable gates or non-rigid members such as chains shall be permitted for special use applications. Handrails in the platform area above the standing surface shall have a vertical height of at least 36 inches and include a mid-rail.
  • OSHA: 1910.29(b)(1) The top edge height of top rails, or equivalent guardrail system members, are 42 inches (107 cm), plus or minus 3 inches (8 cm), above the walking-working surface. The top edge height may exceed 45 inches (114 cm), provided the guardrail system meets all other criteria of paragraph (b) of this section (see Figure D–11 of this section).
  • Midrails, screens, mesh, intermediate vertical members, solid panels, or equivalent intermediate members are installed between the walking-working surface and the top edge of the guardrail system as follows when there is not a wall or parapet that is at least 21 inches (53 cm) high:
  • Midrails are installed at a height midway between the top edge of the guardrail system and the walking-working surface;
  • 1910.29(b)(3) Guardrail systems are capable of withstanding, without failure, a force of at least 200 pounds (890 N) applied in a downward or outward direction within 2 inches (5 cm) of the top edge, at any point along the top rail.
  • When the 200-pound (890-N) test load is applied in a downward direction, the top rail of the guardrail system must not deflect to a height of less than 39 inches (99 cm) above the walking-working surface.
  • Guardrail systems are smooth-surfaced to protect employees from injury, such as punctures or lacerations, and to prevent catching or snagging of clothing.
  • 1910.29(b)(7) The ends of top rails and midrails do not overhang the terminal posts, except where the overhang does not pose a projection hazard for employees.

    Key

    • A = Performs well
    • B = Slightly affected
    • C = Moderately affected
    • D = Highly affected
    • U = Not recommended
    • NT = Not tested
    Chemical Urethane Nitrile PVC CFR SBR Natural Rubber
    Acetone U U U C C C
    Animal Fats NT A C U U U
    Bleach Solution (10% Dilute) NT B B C C C
    Boric Acid B A A A A A
    Brake Fluid U A B D D D
    Brake Fluid (Silicone Based) U A B A B B
    Chlorine Solution (3% Dilute) C A B C C C
    Citric Acid NT A C C C U
    Cutting Fluid (Mineral Oil Based) U B B B C D
    Diesel Oil U A B U U U
    Ethylene Acetate NT U NT U U U
    Ethylene Glycol B A A A A A
    Hydraulic Oil (Petroleum) U A B D D D
    Hydrochloric Acid Cole (37% Dilute) U C C B B B
    Isopropyl Alcohol A B A B B A
    Lacquer Solvents U U U U U U
    Lindol (Hydraulic Fluid) NT U NT U U U
    MEK U U U U U U
    Mineral Oil C A B A B U
    Naptha NT C U U U U
    Napthlene U U U U U U
    Petroleum U C B D D D
    Salt Water A A B B B C
    Tolulene U U U U U U
    Transmission Fluid (Type A) U B A C U U
    Trichloroethane U U U U U U
    Vegetable Oil C A B C C C
    Write Your Own Review
    You're reviewing:Corner Post Railing Kit
    Your Rating

    Q: Do I need railing?

    A: Railing is not required for any FOUNDATION platform. See below for OSHA guidance on railing.

    Q: How do I design my railing?

    A: Contact us to work with an expert on planning out your railing. Our contact form is available on the website.

    Q: What is the railing made of?

    A: The railing is made of galvanized steel.

    Q: Can someone help me plan out my railing?

    A: We are happy to work with you to plan your railing. If you can provide a diagram, that can be a good starting point. Simply fill our our contact form.

    Q: Can the railing be used on anything other than a concrete floor?

    A: Our railing system is intended to be used on concrete. If it will be used with another surface, other anchors may need to be purchased

    Q: How tall does my railing need to be?

    A: Railing height should be 42 inches (1.06m) above the walking surface. If used with a platform, the total height of your rail should be 42 inches (1.06m) added to the height of the platform.

    Q: Can I have a shorter width or length railing kit?

    A: Our kits come standard with 6-foot (1.82m) rails. This means the Posts will be roughly 6' apart. To get a shorter kit, simply cut onsite the rails or posts to the proper size to fit.

    Q: Can the railings be attached to the FOUNDATION platforms?

    A: Wearwell’s railings are not made to be attached to the platform itself.

    Q: How sturdy is the railing?

    A: Railing can handle a minimum of 200 pounds of force in any direction.

    Q: Can Wearwell railing turn at angles other than 90-degrees?

    A: Currently, only 90-degree turns are available with Wearwell railing.

    Q: Can Wearwell railings be used for stairs?

    A: Currently Wearwell railing is not intended for stairways.

    Q: What OSHA or other regulations are required for railing or working at height?

    A: ANSI: ANSI A14.7-2011, 4.4.4 All ladder stand platforms with platform height of 4 feet to 10 feet shall be provided with handrails. The use of removable gates or non-rigid members such as chains shall be permitted for special use applications. Handrails in the platform area above the standing surface shall have a vertical height of at least 36 inches and include a mid-rail.

    OSHA: 1910.29(b)(1) The top edge height of top rails, or equivalent guardrail system members, are 42 inches (107 cm), plus or minus 3 inches (8 cm), above the walking-working surface. The top edge height may exceed 45 inches (114 cm), provided the guardrail system meets all other criteria of paragraph (b) of this section (see Figure D–11 of this section).

    Midrails, screens, mesh, intermediate vertical members, solid panels, or equivalent intermediate members are installed between the walking-working surface and the top edge of the guardrail system as follows when there is not a wall or parapet that is at least 21 inches (53 cm) high:

    Midrails are installed at a height midway between the top edge of the guardrail system and the walking-working surface;

    1910.29(b)(3) Guardrail systems are capable of withstanding, without failure, a force of at least 200 pounds (890 N) applied in a downward or outward direction within 2 inches (5 cm) of the top edge, at any point along the top rail.

    When the 200-pound (890-N) test load is applied in a downward direction, the top rail of the guardrail system must not deflect to a height of less than 39 inches (99 cm) above the walking-working surface.

    Guardrail systems are smooth-surfaced to protect employees from injury, such as punctures or lacerations, and to prevent catching or snagging of clothing.

    1910.29(b)(7) The ends of top rails and midrails do not overhang the terminal posts, except where the overhang does not pose a projection hazard for employees.
