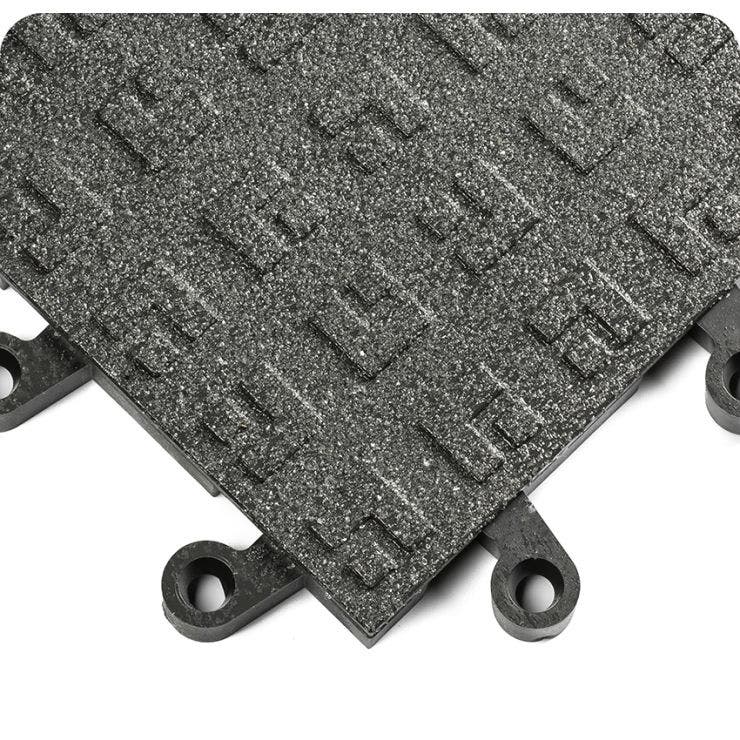

ErgoDeck® General Purpose Solid with Gritshield®
A high traction, ergonomic floor that will withstand heavy use. The LockSafe Positive Interlocking System delivers secure connections. Perfect for lean manufacturing, tiles can be unlocked and repositioned as work centers change to fit customer needs. The optional 6" side safety ramps and corners have countersunk holes for semi-permanent installation. ErgoDeck General Purpose with GRITSHIELD increases traction by 40% and addresses worker health and comfort in areas with primarily foot traffic and light cart traffic.
Read more- U.S. PATENT NO. D502,557; D520,650
- Softer compound for greater standing relief in wet or dry applications
- Customize in 3" increments to fit any area or configuration
- Positive Interlocking System prevents separation
- Easily replace single pieces or sections as needed to reduce costs
- 100% Silicone Free PVC tiles provide maximum durability
- Available in Solid and Drainage version and with GRITSHIELD for extra traction
- Overall thickness 7/8”
Learn more about the benefits of ErgoDeck in our blog - Top 6 Benefits of ErgoDeck Anti-Fatigue Floors.
Show lessSKU 567
In stock
×
Select a Sample
The sample was successfully added to your cart.
Enter the width and length of the installation area.
| Width (ft) Width (m) | Length (ft) Length (m) | Square Footage of Flooring Square Meters of Flooring | ||
| × | = | 50 |
Length entered should be the total feet of edging for all ramped sides.
Length entered should be the total meters of edging for all ramped sides.
| Length (ft) Length (m) | Linear Footage of Edging Linear Meters of Edging | |
| = | 40 |
If you would like to receive a copy of this report please submit the below form
×
Thank you for the request. The Estimates are sent to your email. Kindly reach out to us for any queries here.
Find details here.Need help with the purchase? find details here
| SKU | Short Description | Color | Thickness | Dimensions | Stock Part | UOM |
|---|---|---|---|---|---|---|
| 567.78x18x18CH | ErgoDeck General Purpose Solid with Grit Shield | Charcoal | 7/8" | 18" x 18" | Yes | EA |
| 567.78x18x18CH-CS10 | ErgoDeck General Purpose Solid with Grit Shield | Charcoal | 7/8" | 18" x 18" | Yes | CS-10 |
Ramps and accessories
| SKU | Short Description | Color | Thickness | Dimensions | Stock Part | UOM |
|---|---|---|---|---|---|---|
| Ramp | ||||||
| 560.78x6x18BK-CS10 | ErgoDeck heavy duty ramps provide a professional finish and a smooth on-off transition for your ErgoDeck flooring. These ramps work to prevent trips while outlining a perimeter of a workspace. | Black | 7/8" | 6" x 18" | Yes | CS-10 |
| 560.78x6x36AL | Tough environments demand even tougher edging. ErgoDeck® Aluminum Ramps - are high-strength, lightweight, and chemical resistant ramps that create a gradual transition for any ErgoDeck® flooring system - not to mention a sleek design look. | Aluminum | 6" x 36" | Yes | EA | |
| 560.78x6x18YL-CS10 | ErgoDeck ramps | Yellow | 7/8" | 6" x 18" | Yes | CS-10 |
| 561.78x6x18BK-CS10 | ErgoDeck Heavy Duty with Grit Shield Ramp Black Case | Black | 7/8" | 6" x 18" | No | CS-10 |
| 561.78x6x18BK | ErgoDeck Heavy Duty Ramps with GRITSHIELD | Black | 7/8" | 6" x 18" | No | EA |
| Outside corner | ||||||
| 560.78x6x15x15BK-CS4 | ErgoDeck Outside Corner | Black | 7/8" | 6" x 15" x 15" | Yes | CS-4 |
| 560.78x6x15x15YL-CS4 | ErgoDeck Outside Corner | Yellow | 7/8" | 6" x 15" x 15" | Yes | CS-4 |
| 561.78x6x15x15BK-CS4 | ErgoDeck Heavy Duty with Grit Shield Outside Corner Black | Black | 7/8" | 6" x 15" x 15" | No | CS-4 |
| 560.78x6x15x15AL | Tough environments demand even tougher edging. ErgoDeck® Aluminum Ramps - are high-strength, lightweight, and chemical resistant ramps that create a gradual transition for any ErgoDeck® flooring system - not to mention a sleek design look. | Aluminum | 7/8" | 6" x 15" x 15" | Yes | EA |
| Inside corner | ||||||
| 560.78x6x9x9BK | The ErgoDeck inside corner allows for any possible configuration of ErgoDeck. Wearwell’s inside corner fits snug, preventing trips and calling out the perimeter of the workspace. | Black | 7/8" | 6" x 9" x 9" | Yes | EA |
| 560.78x6x9x9YL | ErgoDeck Inside Corner | Yellow | 7/8" | 6" x 9" x 9" | Yes | EA |
| 561.78x6x9x9BK | ErgoDeck Heavy Dutywith Grit Shield Inside Corner Black | Black | 7/8" | 6" x 9" x 9" | No | EA |
| 560.78x6x9x9AL | Tough environments demand even tougher edging. ErgoDeck® Aluminum Ramps - are high-strength, lightweight, and chemical resistant ramps that create a gradual transition for any ErgoDeck® flooring system - not to mention a sleek design look. | Aluminum | 7/8" | 6" x 9" x 9" | Yes | EA |
| Product Family | Thickness | Width | Length | Color | Product Number | ||||
| ML414 | . | 1516 | x | 2 | x | 10 | BK | = | ML414.1516x2x10BK |
DETAILS & COMPOSITION
| Environment | Wet, Oily, Slippery |
| Wearwell Categories | Anti-Fatigue Flooring |
| Customization Level | C3 - Full Custom (Length, Width, Shape) |
| Solid or Drainage | Solid |
| Compound | PVC |
| Recycled | >80% |
| Warranty | 1 Year |
| WARNING |
|
TEST RESULTS
| Property | Test / Result |
|---|---|
| Flammability | MVSS 302 / 'A'; Rating |
| Taber Abrasion | ASTMASTM D 3884 / 1% loss |
| Temperature Range | 0 to 120 F |
| Coefficient of Friction | ASTM F1677-05 / Dry: COF = 1.1 / Wet: COF = .93 |
| Compression Deflection | Not Available |
| Tear Strength | Not Available |
| ESD Rating | Not Available |
| Dielectric Strength | Not Available |
Key
- A = Performs well
- B = Slightly affected
- C = Moderately affected
- D = Highly affected
- U = Not recommended
- NT = Not tested
| Chemical | Urethane | Nitrile | PVC | CFR | SBR | Natural Rubber |
|---|---|---|---|---|---|---|
| Acetone | U | U | U | C | C | C |
| Animal Fats | NT | A | C | U | U | U |
| Bleach Solution (10% Dilute) | NT | B | B | C | C | C |
| Boric Acid | B | A | A | A | A | A |
| Brake Fluid | U | A | B | D | D | D |
| Brake Fluid (Silicone Based) | U | A | B | A | B | B |
| Chlorine Solution (3% Dilute) | C | A | B | C | C | C |
| Citric Acid | NT | A | C | C | C | U |
| Cutting Fluid (Mineral Oil Based) | U | B | B | B | C | D |
| Diesel Oil | U | A | B | U | U | U |
| Ethylene Acetate | NT | U | NT | U | U | U |
| Ethylene Glycol | B | A | A | A | A | A |
| Hydraulic Oil (Petroleum) | U | A | B | D | D | D |
| Hydrochloric Acid Cole (37% Dilute) | U | C | C | B | B | B |
| Isopropyl Alcohol | A | B | A | B | B | A |
| Lacquer Solvents | U | U | U | U | U | U |
| Lindol (Hydraulic Fluid) | NT | U | NT | U | U | U |
| MEK | U | U | U | U | U | U |
| Mineral Oil | C | A | B | A | B | U |
| Naptha | NT | C | U | U | U | U |
| Napthlene | U | U | U | U | U | U |
| Petroleum | U | C | B | D | D | D |
| Salt Water | A | A | B | B | B | C |
| Tolulene | U | U | U | U | U | U |
| Transmission Fluid (Type A) | U | B | A | C | U | U |
| Trichloroethane | U | U | U | U | U | U |
| Vegetable Oil | C | A | B | C | C | C |
Wearwell 2023 Digital Catalog FAQ’s
Q: What are the benefits of using anti-fatigue flooring?
A: Anti-fatigue flooring is designed to offer a wide range of benefits to employees and employers. Anti-Fatigue flooring can increase worker productivity, reduce slips, trips and falls and improve the overall health of your employees.
Q: How does anti-fatigue flooring improve overall health of my employees?
A: Standing long-term, especially on hard, unforgiving concrete leads to lower back pain, swelling of joints and poor circulation that can lead to varicose veins. Standing on anti-fatigue flooring allows for continuous muscle movement which leads to increased blood flow to the legs, feet and back. Continuous blood circulation reduces fatigue, alleviates back pain and reduces swelling.
Q: How does anti-fatigue flooring increase employee productivity?
A: Fatigue eventually leads to lack of focus and concentration on the task at hand. Anti-fatigue flooring reduces worker fatigue allowing them to remain focused on the job at hand.
Q: What if one tile gets damaged?
A: Simply remove it and replace with a new tile.
Q: How do you connect a ramp to the side of the tile that has connectors?
A: Simply cut off the interlocks on the ramp.
Q: What is meant by "customizable in 3" increments"?
A: Unlike other modular tiles available in the market, our LockSafe connection can be cut every 3" without losing the ability to connect to adjoining tiles.
Q: How do I cut ErgoDeck tiles?
A: ErgoDeck is a robust product. While it can be cut with a utility knife, we suggest a band saw or similar cutting equipment for larger installations.
Q: Do I need to use adhesives or special tools?
A: One of the biggest benefits of the LockSafe system is a secure, dependable connection that snaps together and holds tight in-use, but zips apart for reconfiguration or replacement! No tools are necessary for the assembly or disassembly, however, a rubber mallet is sometimes used in installation to quickly "lock" the connectors. Alternatively, they can be "locked" by walking along the edges of each tile.
Q: What does “general purpose” mean?
A: General Purpose is intended to be used in areas with heavy foot traffic. We manufacture ErgoDeck General Purpose using the same mold as that of our Heavy Duty product but with a softer, lower durometer material for greater anti-fatigue benefit.
Q: Can I use it over grating or catwalks?
A: General purpose is a softer compound intended for ergonomics over solid surfaces. For grating, we suggest using our ErgoDeck Heavy-Duty or Cleated products.
Q: What is GRITSHIELD?
A: GRITSHIELD is our own formulation of dependable traction using clear, recycled silica for sure-footedness in slippery areas. The clear property allows GRITSHIELD to be used over any color product, including yellow ramps!
Q: Can it be power washed?
A: We don't suggest power washing any gritted product. If your cleaning protocol requires pressure washing we suggest using our Cleated ErgoDeck products.
Q: I have a large, unique area to cover. How do I know how much product to order?
A: If you need help determining exactly how many tiles and how many feet of edging, we have field experts in your area that are happy to assist. Just inquire about our FREE Site Survey!
Q: Are the colors shown on your website the exact color I should expect to receive?
A: No, because monitors vary so there may be a slight variance in the color. If color choice is critical, we suggest that you order a sample. Due to manufacturing processes and material dye lots, color can vary, but our products fall within an industry-standard acceptable variation.
